SELECT A DIAGRAM
New Model Search:

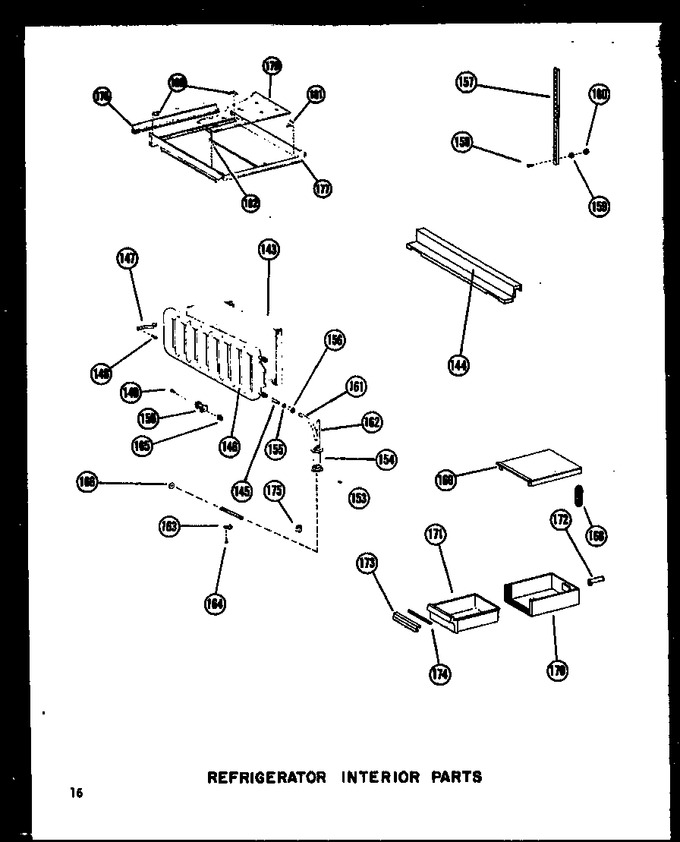

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 143 | B5707402 | Insulation K |
|
- | |||||
| 145 | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
$ 8.21 | |||||
| 146 | D7216301 | Service Tank |
|
- | |||||
| 147 | B5698901 | Spring-leaf |
|
- | |||||
| 148 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 149 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 150 | B5698101 | Support Water Tank |
|
- | |||||
| 153 | A3138301 | Grommet |
|
- | |||||
| 154 | A3224901 | Drain Tube |
|
- | |||||
| 155 | M0500702 | O Ring K |
|
- | |||||
| 156 | M0282201 | Nut, Compression |
|
- | |||||
| 157 | D7103701 | Ladder |
|
- | |||||
| 158 | M0207619 | Screw |
|
- | |||||
| 159 | M0270519 | Washer |
|
- | |||||
| 160 | WP486255 | Nut Keps K (Replaces: M0281003) |
|
$ 6.47 | |||||
| 161 | WPB5705307 | Tubing Plastic (Replaces: B5705306) |
|
$ 13.05 | |||||
| 162 | A3101506 | Tube Plastic K |
|
- | |||||
| 163 | M0102802 | Clamp |
|
- | |||||
| 164 | M0233716 | Screw |
|
- | |||||
| 165 | M0580001 | Grommet, Screw |
|
- | |||||
| 166 | A3207902 | Grommet, Tube |
|
- | |||||
| 168 | C3588301 | Return Air Grille |
|
- | |||||
| 169 | D7001104 | Top, Meat Keeper |
|
- | |||||
| 170 | D7252301 | Sleeve, Meat Keeper |
|
- | |||||
| 171 | D3975703 | Pan, Meat Keeper |
|
- | |||||
| 172 | C3614902 | Grommet |
|
- | |||||
| 173 | C3623002 | Trim, Handle |
|
- | |||||
| 174 | A3030313 | Gasket (per Foot) |
|
- | |||||
| 175 | A3225902 | Spring |
|
- | |||||
| 177 | D7215401 | Frame Cantilever, Meat Keeper |
|
- | |||||
| 177 | D7215201 | Frame Cantilever |
|
- | |||||
| 178 | C8716101 | Trim Shelf A |
|
- | |||||
| 179 | B5724101 | Shelf-glass A |
|
- | |||||
| 180 | A3232201 | Spacer Shelf A |
|
- | |||||
| 181 | A3233901 | Spacer Shelf A |
|
- | |||||
| 182 | A3233902 | Spacer Shelf A |
|
- |
