SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

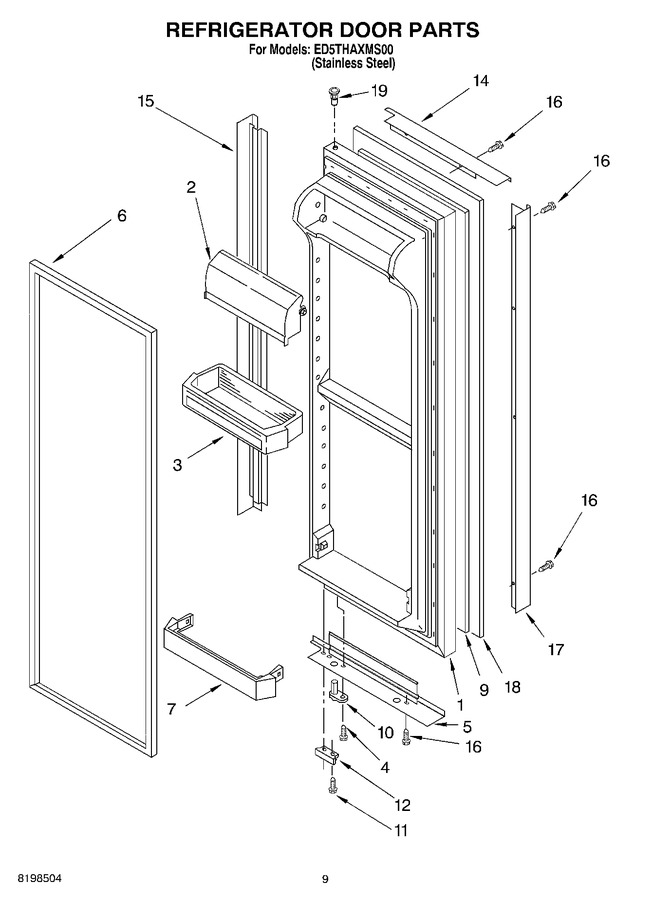

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2219864B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 89.42
3	WPW10321304		Shelf Bin (3)   (Replaces: 2179607)			Immediately	$ 44.73
4	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
5	2220437S		Trim, Door Bottom (stainless Steel)		Appelez-nous	-
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
7	WP2156022		Trivet   (Replaces: 2156022)			Immediately	$ 72.80
9	2219803		Filler Board		Appelez-nous	-
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2206630B		Bracket, Door Stop (black)		Appelez-nous	-
14	2220432S		Trim, Door Top (stainless Steel)		Appelez-nous	-
15	2220430S		Trim, Hinge Side (stainless Steel)		Appelez-nous	-
16	3400897		Screw		Appelez-nous	-
17	2206852S		Handle (stainless Steel)		Appelez-nous	-
18	2206889S		Panel, Door (stainless Steel)		Appelez-nous	-
19	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15

    View Diagram in Separate Window       Print Part List
