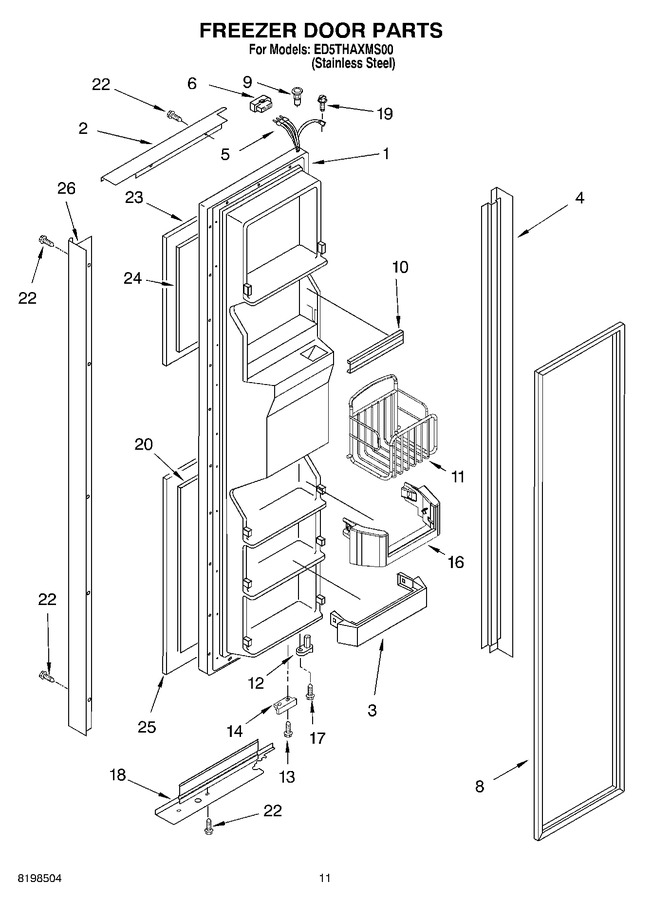

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2261194B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	2220433S		Trim, Door Top (stainless Steel)		Appelez-nous	-
3	WP2171157		Trivet   (Replaces: 2171157)				$ 60.67
4	2220428S		Trim, Hinge Side (stainless Steel)		Appelez-nous	-
5	2198619		Dispenser Harness		Appelez-nous	-
6	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
9	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
11	2223333		Basket, Tilt-out (2)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2206630B		Bracket, Door Stop (black)		Appelez-nous	-
16	2223334		Trivet, Tilt-out (2)				$ 25.46
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
18	2220435S		Trim, Door Bottom (stainless Steel)		Appelez-nous	-
19	WP489128		Screw   (Replaces: 488500)				$ 10.88
20	2219800		Filler, Board Lower		Appelez-nous	-
22	3400897		Screw		Appelez-nous	-
23	2206887S		Panel, Door Upper (stainless Steel)		Appelez-nous	-
24	2219799		Filler, Board Upper		Appelez-nous	-
25	2206888S		Panel, Door Lower (stainless Steel)		Appelez-nous	-
26	2206851S		Handle (stainless Steel)		Appelez-nous	-
