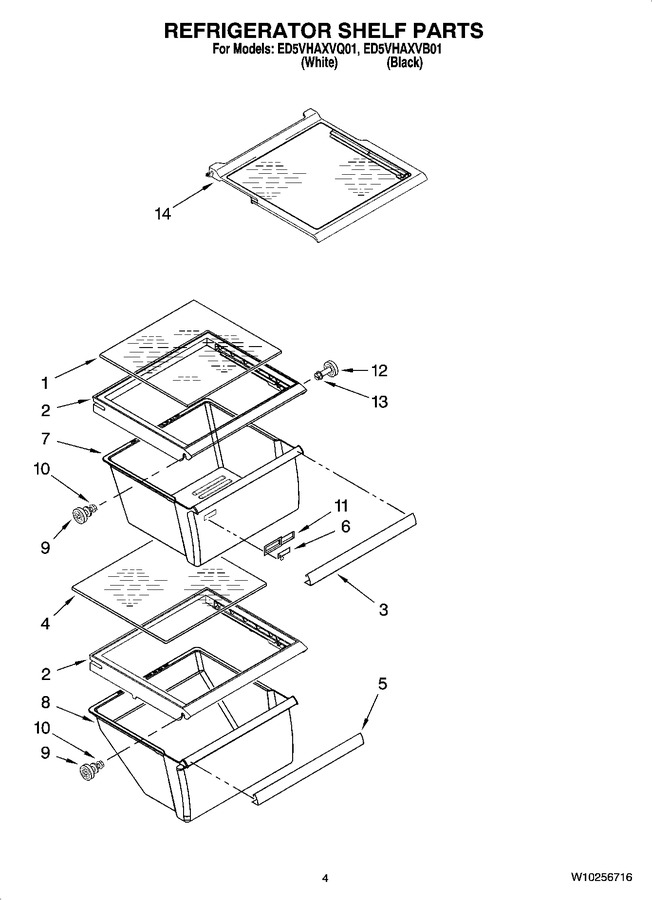

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10864399 | Glass, Cover (Replaces: 2179259) |
|
$ 220.98 | |||||
| 2 | W10508993 | Cover, Crisper (Replaces: 2209698) |
|
$ 291.29 | |||||
| 3 | WP2179234 | Trim, Pan (Replaces: 2255593) |
|
$ 84.35 | |||||
| 4 | W10864399 | Glass, Cover (Replaces: 2179259) |
|
$ 220.98 | |||||
| 5 | WP2179234 | Trim, Meat Pan (Replaces: 2255592) |
|
$ 84.35 | |||||
| 6 | WP2179342 | Slide, Humidity Control (Replaces: 2179342) |
|
$ 29.14 | |||||
| 7 | WP2188656 | Crisper Pan (Replaces: 2188652) |
|
$ 136.40 | |||||
| 8 | WP2188664 | Meat Pan (Replaces: 2188654) |
|
Immediately | $ 85.30 | ||||
| 9 | W11223328 | Stud Assembly (Replaces: 2196485) |
|
Immediately | $ 14.07 | ||||
| 10 | WP3-24004-109 | Screw (Replaces: 3400894) |
|
$ 8.05 | |||||
| 11 | WP2179343 | Housing, Humidity Control (Replaces: 2179343) |
|
$ 32.40 | |||||
| 12 | WP2196483 | Stud Assembly (Replaces: 2196483) |
|
$ 10.35 | |||||
| 13 | WP3400806 | Screw (Replaces: 8281158) |
|
$ 7.71 | |||||
| 14 | WPW10276348 | Shelf Assembly, Spillguard (3) (Replaces: 2309524) |
|
Immediately | $ 223.91 |
