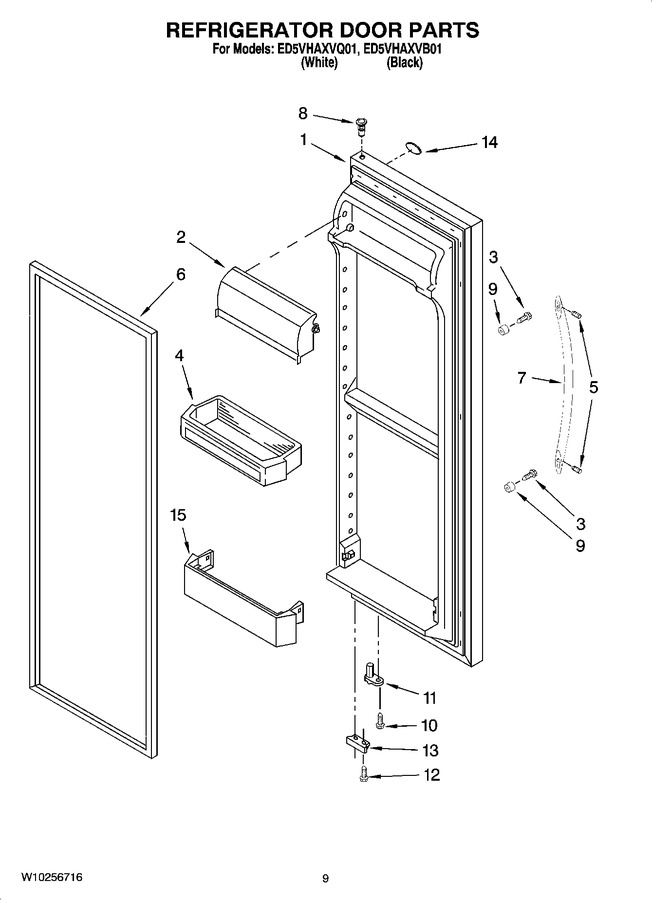

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2217535B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2217535W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	WP488163		Screw   (Replaces: 488208)				$ 7.54
4	WP2203828		Door Bin (3)   (Replaces: 2203828)				$ 95.52
5	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 15.79
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309528)			Immediately	$ 317.14
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2309529)				$ 251.49
7	WP2254600B		Handle (black)   (Replaces: 2254600B)				$ 208.77
7	WP2254600W		Handle (white)   (Replaces: 2254600W)				$ 235.14
8	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
9	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
13	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
14	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
15	WP2156022		Trivet   (Replaces: 2156022)			Immediately	$ 72.80
