Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A3080001 Plug, Button (blk) Appelez-nous -
1 A3080002 Plug, Button (wht) Appelez-nous -
2 B5630510 Fill Tube Assy Appelez-nous -
3 A3091301 Plug Button Appelez-nous -
4 A3127405 Ext-fill Tube Appelez-nous -
5 D7261601 Kit, Icemaker Appelez-nous -
6 M0500702 O Ring K Appelez-nous -
6 M0500701 O Ring Appelez-nous -
7 WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) Special Order $ 8.21

8 A3224501 Brkt-ice Maker Appelez-nous -
9 WPB5705307 Tube, Plastic   (Replaces: A3101505) Special Order $ 13.05

10 M0580007 Grommet, Screw Appelez-nous -
11 M0102804 Clamp Appelez-nous -
12 A3084501 Coupling, Solenoid Valve And H Appelez-nous -
13 4318046 Water Valve Assy   (Replaces: D7208403) In-Stock Immediately $ 92.87

14 M0282201 Nut, Compression Appelez-nous -
14 M0282301 Nut, Sleeve Appelez-nous -
15 B5701401 Bracket-solenoid Appelez-nous -
16 A3034801 Saddle Valve Appelez-nous -
17 C3667001 Compressor Ae1413a Appelez-nous -
18 C3688602 Support, Comp. Weld Appelez-nous -
19 A3026101 Grommet K Appelez-nous -
20 M0590101 Washer, Nylon K Appelez-nous -
21 A3140801 Clip K Appelez-nous -
22 C3689101 Overload K Appelez-nous -
23 A3043601 Spring K Appelez-nous -
24 C3689201 Relay Appelez-nous -
25 B0551801 Terminal Cover Appelez-nous -
26 A3041801 Strap K Appelez-nous -
27 R0157154 Power Cord Appelez-nous -
28 A0319703 Strain Relief K Appelez-nous -
28 A3245101 Strain Relief Appelez-nous -
29 B5720302 Clip Appelez-nous -
32 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

33 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

34 M0253916 Screw Appelez-nous -
35 M0233104 Screw Appelez-nous -
36 M0251017 Screw Appelez-nous -
37 B5768601 End Cap-capacitor Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

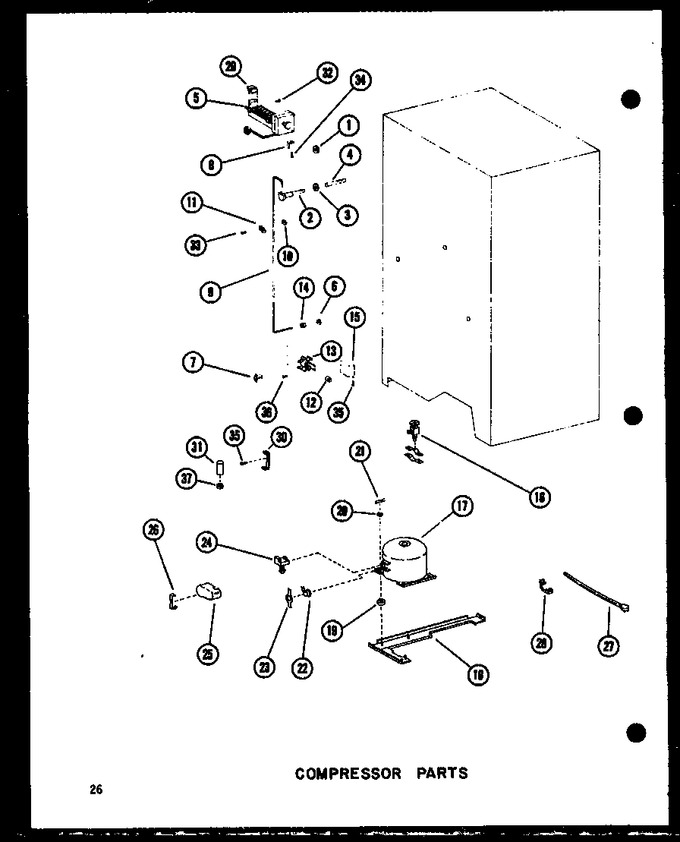

Diagram for CSDI25W (BOM: P7332041W)
