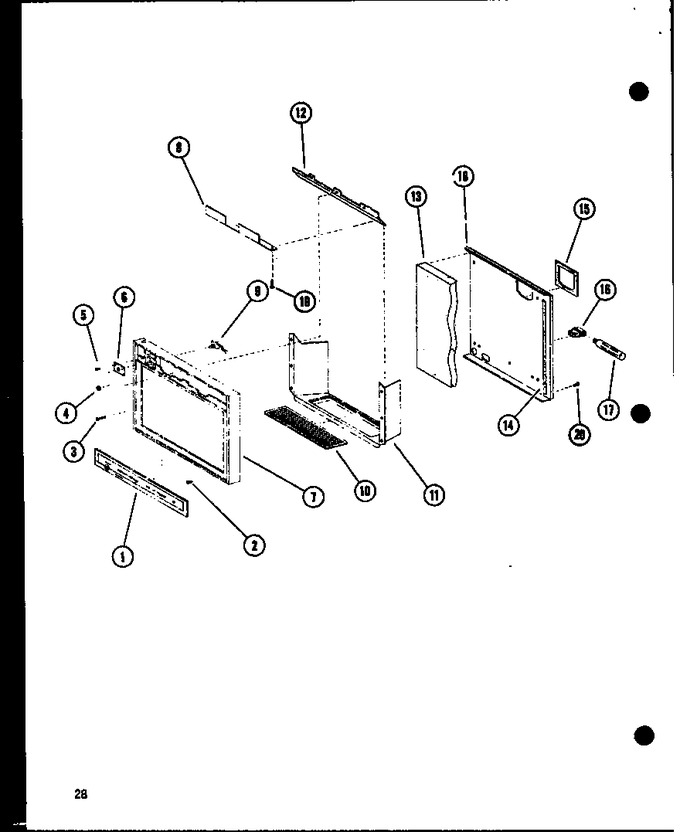

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7190002 | Escutcheon |
|
- | |||||
| 2 | M0244531 | Screw |
|
- | |||||
| 3 | M0211022 | Screw |
|
- | |||||
| 4 | M0281401 | Nut A |
|
- | |||||
| 5 | W11084238 | Screw (Replaces: M0234001) |
|
- | |||||
| 6 | A3221001 | Mtg Plate-switch |
|
- | |||||
| 7 | D7182601 | Bezel |
|
- | |||||
| 8 | B5716101 | Shield Switch |
|
- | |||||
| 9 | M0340107 | Switch-light A |
|
- | |||||
| 10 | B5698201 | Grille |
|
- | |||||
| 11 | D7182501 | Insert-cavity |
|
- | |||||
| 12 | C3693101 | Trim-cavity |
|
- | |||||
| 13 | C8701601 | Insulation A |
|
- | |||||
| 14 | A3219101 | Insulation Block A |
|
- | |||||
| 15 | A3212301 | Gasket A |
|
- | |||||
| 16 | B5777701 | Socket Light A |
|
- | |||||
| 17 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 18 | D7344201 | Front, Chassis |
|
- | |||||
| 19 | M0233728 | Screw |
|
- | |||||
| 20 | M0254020 | Screw |
|
- |
