SELECT A DIAGRAM

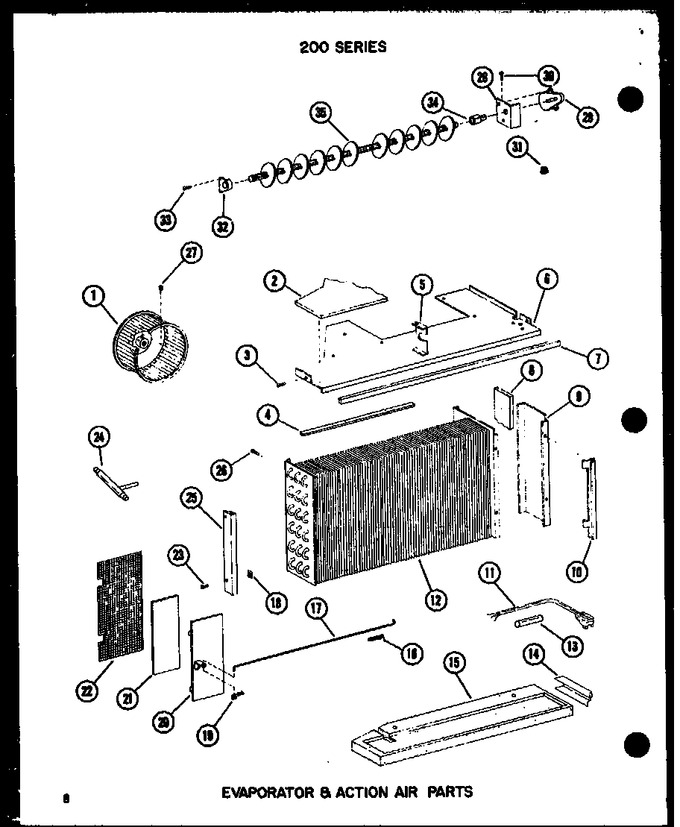

01 - Compressor Parts


02 - Condenser Parts


03 - Control Parts


04 - Evap & Action Air Parts


05 - Exterior Parts


06 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D5352101		Blower Wheel		Appelez-nous	-
2	B1263401		Insulation		Appelez-nous	-
3	M0211545		Screw		Appelez-nous	-
4	A3030332		Gasket-per Ft		Appelez-nous	-
5	B5170401		Spacer,plenum		Appelez-nous	-
6	D5466403		Evaporator Cover		Appelez-nous	-
7	A3030317		Gasket		Appelez-nous	-
8	A4622001		Insulation		Appelez-nous	-
9	B5107002		Barrier		Appelez-nous	-
10	B1108901		Retainer		Appelez-nous	-
11	C5283104		Cord, Power		Appelez-nous	-
12	D5539601		Evaporator Assy		Appelez-nous	-
13	M0321016		Sleeve		Appelez-nous	-
14	A4600001		Shield,filler Block		Appelez-nous	-
15	D5350101		Filler Block		Appelez-nous	-
16	B5109001		Spring		Appelez-nous	-
17	B5106401		Rod		Appelez-nous	-
18	M0288302		Speed Nut		Appelez-nous	-
19	M0110901		Clip		Appelez-nous	-
20	C5236701		Damper Door		Appelez-nous	-
21	B5107601		Gasket		Appelez-nous	-
22	B4793403		Screen		Appelez-nous	-
23	M0211530		Screw		Appelez-nous	-
24	B5159301		Strainer		Appelez-nous	-
25	B5131902		Retainer-filter		Appelez-nous	-
26	R9800670		Screw   (Replaces: M0211343)				$ 10.58
27	M0210104		Set Screw		Appelez-nous	-
28	A4653301		Lever		Appelez-nous	-
29	M0370901		Motor		Appelez-nous	-
30	M0211314		Screw		Appelez-nous	-
31	M0500110		Grommet		Appelez-nous	-
32	A4653401		Bearing		Appelez-nous	-
33	W11233072		Use M0214931   (Replaces: M0211531)			Immediately	$ 14.72
34	A4653501		Extension		Appelez-nous	-
35	C5827501		Deflector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
