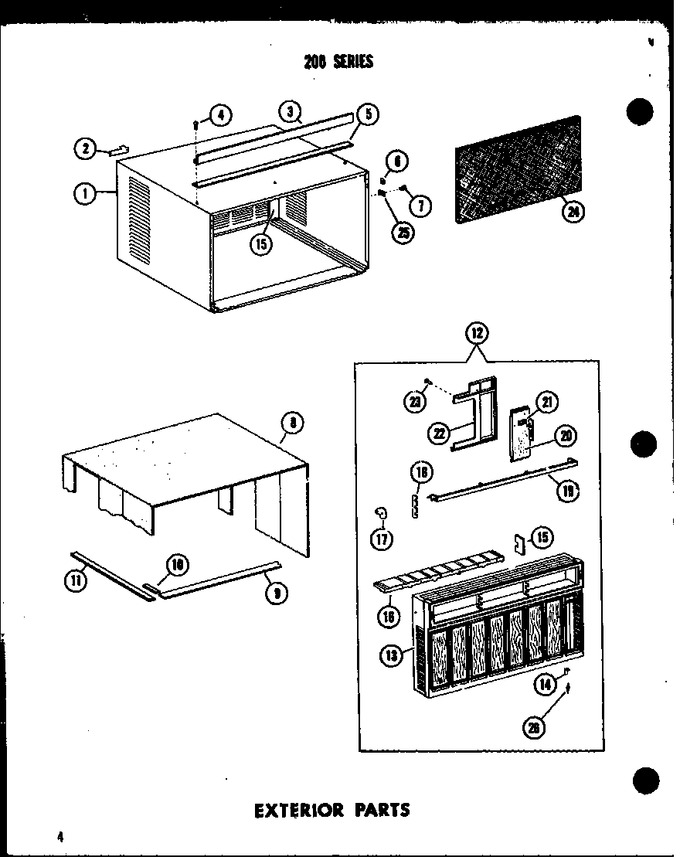

01 - Compressor Parts


02 - Condenser Parts


03 - Control Parts


04 - Evap & Action Air Parts


05 - Exterior Parts


06 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D5378319		Outer Case Weldment		Appelez-nous	-
2	B4115501		Nameplate		Appelez-nous	-
3	B1100701		Angle-top		Appelez-nous	-
4	M0211543		Screw		Appelez-nous	-
5	A3030328		Gasket (1= 1ft.)		Appelez-nous	-
6	M0288412		Speed Nut		Appelez-nous	-
7	M0234916		Thumb Screw K		Appelez-nous	-
8	C5912702		Insulation-oc		Appelez-nous	-
9	B5107615		Gasket		Appelez-nous	-
10	A3030304		Gasket, 24``		Appelez-nous	-
11	A3030319		Gasket-per Ft		Appelez-nous	-
12	B1108801		Front Assembly, Cabinet		Appelez-nous	-
13	D5466601		Cabinet Front, Frame Only		Appelez-nous	-
14	A4577807		Hook, Cabinet Front Bottom To		Appelez-nous	-
15	B1110801		Gasket Condenstate A		Appelez-nous	-
15	B1110802		Gasket-lh		Appelez-nous	-
16	D5473901		Insulation		Appelez-nous	-
17	A4688702		Wheel-thumb		Appelez-nous	-
17	A4688701		Wheel-thumb		Appelez-nous	-
18	A4688801		Tie Bar-louver A		Appelez-nous	-
19	C5878601		Louver, Horizontal		Appelez-nous	-
20	C5879601		Door, Cabinet Front, Decorator		Appelez-nous	-
21	A4689701		Nameplate		Appelez-nous	-
22	D5466701		Retainer, Sliding Door		Appelez-nous	-
23	M0230017		Screw,tc		Appelez-nous	-
24	D5373801		Filter		Appelez-nous	-
25	B1150501		Strike, Cabinet Front Attachin		Appelez-nous	-
26	A4539602		Pop Rivet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
