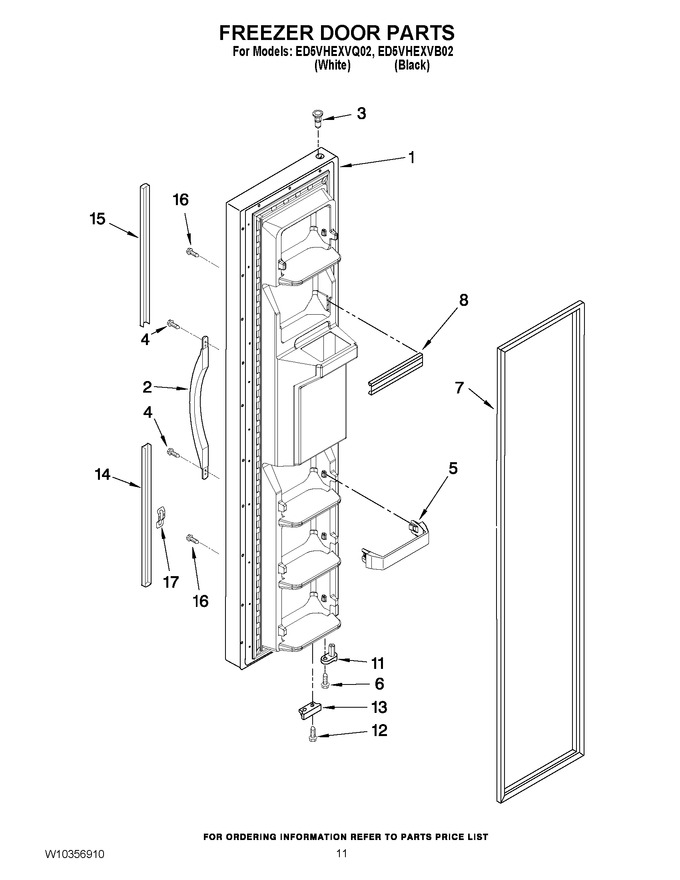

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10323115		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10323116		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10285542		Handle (white)				$ 71.46
2	W10285540		Handle (black)				$ 71.85
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2309718		Trivet (4)   (Replaces: 2309718)				$ 61.49
6	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
7	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
7	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
8	WPW10307490		Trim, Door Shelf   (Replaces: W10307490)			Immediately	$ 24.27
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	W10219802		Bracket, Door Stop (black)				$ 5.62
13	W10219801		Bracket, Door Stop (chrome)				$ 5.27
14	2194705W		Extension, Bottom (white)				$ 48.88
14	2194705B		Extension, Bottom (black)				$ 47.36
15	2194707W		Extension, Top (white)				$ 45.63
15	2194707B		Extension, Top (black)		Appelez-nous	-
16	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
17	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
