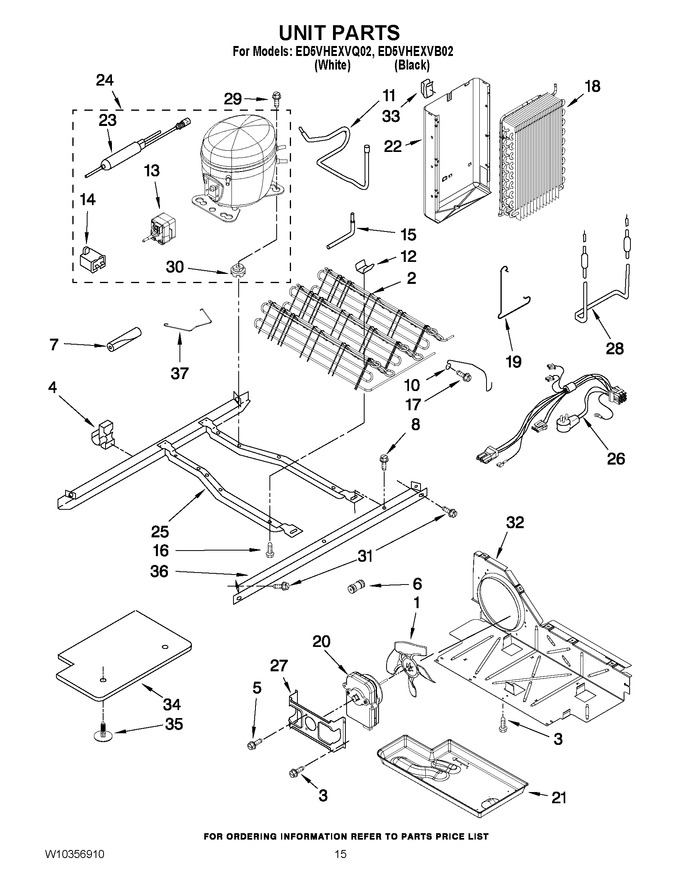

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.11
2	2324712		Condenser Assembly   (Replaces: W10196260)				$ 323.45
3	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
4	2208280		Clip, Wire		Appelez-nous	-
5	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
6	WPW10334458		Connector   (Replaces: W10271540)				$ 22.67
7	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
8	WP489427		Screw   (Replaces: 489427)				$ 7.84
10	2260517		Guard, Fan		Appelez-nous	-
11	W10528574		Tube, Suction   (Replaces: W10177642)				$ 160.36
12	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 19.38
13	WPW10189190		Start Device, Combination (start Relay And Overload)   (Replaces: W10189190)			Immediately	$ 131.29
14	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
15	W10221712		Process, Tube		Appelez-nous	-
16	W11544659		Screw   (Replaces: 8281232)				$ 14.35
17	WP489478		Screw   (Replaces: 489478)				$ 8.18
18	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
19	2161324		Clamp		Appelez-nous	-
20	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 113.96
21	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
22	2217194		Heat Shield		Appelez-nous	-
23	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
24	W10233961		Compressor (includes Items 13, 14, 23 & 30)   (Replaces: W10183575)				$ 643.40
25	W10196313		Unit Mounting Frame		Appelez-nous	-
26	WPW10309395		Unit, Harness   (Replaces: W10309395)				$ 308.35
27	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.93
28	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 90.70
29	876811		Screw   (Replaces: 489373)				$ 7.79
30	W11661108		Grommet (4)   (Replaces: 2183042)				$ 15.21
31	489340		Screw (5)		Appelez-nous	-
32	W10896764		Air Baffle   (Replaces: 2196202)				$ 101.20
33	2155547		Clip, Heat Shield		Appelez-nous	-
34	2304899		Unit Cover, Bottom		Appelez-nous	-
35	489396		Clip				$ 11.26
36	WPW10196323		Unit Mounting Rail   (Replaces: W10196323)				$ 124.89
37	W11661170		Clip, Retaining   (Replaces: W10174384)			Immediately	$ 11.87
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134a))		Appelez-nous	-
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
