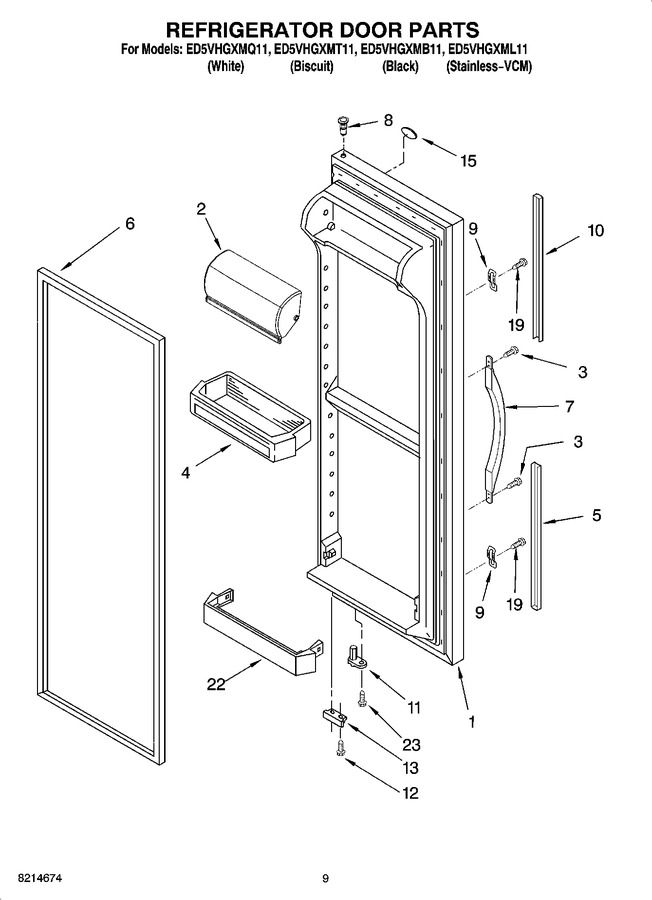

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206682W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2206682T		Refrigerator Door (includes Item 6) (biscuit)		Appelez-nous	-
1	2206682B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2206682L		Refrigerator Door (includes Item 6) (stainless-vcm)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	WP489491		Screw   (Replaces: 489491)				$ 6.95
4	WP2187172		Shelf Bin (3)   (Replaces: 2187172K)			Immediately	$ 45.09
5	WP2194969B		Extension, Handle (black)   (Replaces: 2194969B)				$ 116.40
5	2194969W		Extension, Handle (white)				$ 5.51
5	2194969T		Extension, Handle (biscuit)		Appelez-nous	-
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
7	2186649W		Handle, Center (white)				$ 70.49
7	2186649T		Handle, Center (biscuit)		Appelez-nous	-
7	2186649B		Handle, Center (black)				$ 72.96
8	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
9	WP2195327		Clip   (Replaces: 2195327)				$ 7.40
10	2194973W		Extension, Handle (white)				$ 5.65
10	2194973B		Extension, Handle (black)		Appelez-nous	-
10	2194973T		Extension, Handle (biscuit)		Appelez-nous	-
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
13	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
15	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
19	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
22	WP2177962K		Trivet, Shelf   (Replaces: 2177962K)				$ 81.09
23	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
