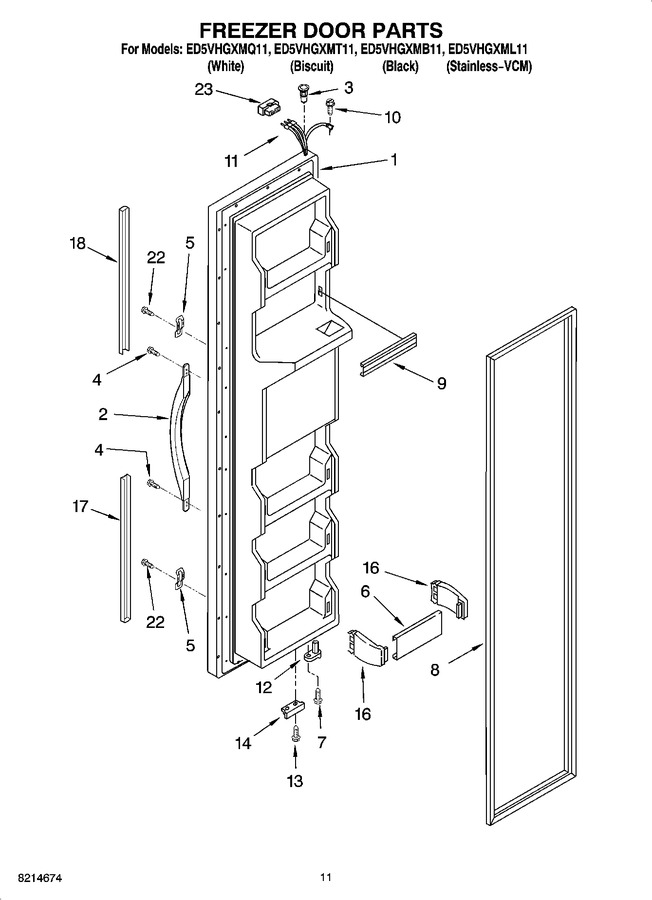

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2255771W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2255771T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2255771B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2255771L		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
2	2186649T		Handle, Center (biscuit)		Appelez-nous	-
2	2186649B		Handle, Center (black)				$ 72.96
2	2186649W		Handle, Center (white)				$ 70.49
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP2195327		Clip   (Replaces: 2195327)				$ 7.40
6	2313199		Trim, Door (4)   (Replaces: 2313199K)				$ 86.60
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 23.11
10	WP489128		Screw   (Replaces: 488500)				$ 10.88
11	2311641		Wire Harness   (Replaces: 2206601)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
16	2195917K		End Cap (8)				$ 10.30
17	2194969T		Extension, Handle (biscuit)		Appelez-nous	-
17	2194969W		Extension, Handle (white)				$ 5.51
17	WP2194969B		Extension, Handle (black)   (Replaces: 2194969B)				$ 116.40
18	2194973T		Extension, Handle (biscuit)		Appelez-nous	-
18	2194973B		Extension, Handle (black)		Appelez-nous	-
18	2194973W		Extension, Handle (white)				$ 5.65
22	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
23	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
