01 - Compressor Parts

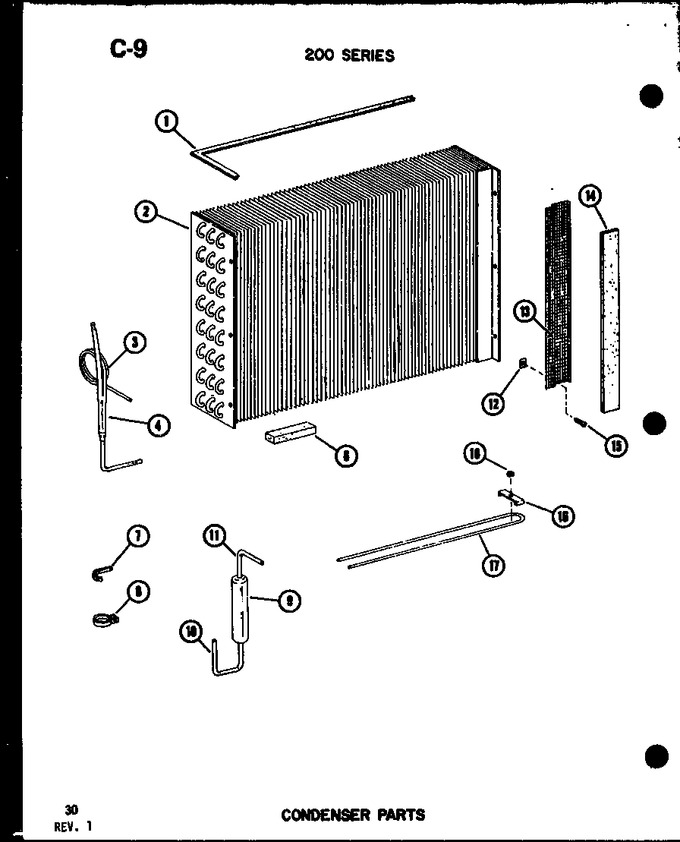

02 - Condenser Parts
03 - Control Parts
04 - Evap & Action Air Parts
05 - Exterior Parts
06 - Interior Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3030332 | Gasket-per Ft |
|
- | |||||
| 2 | D5508802 | Condenser Assy |
|
- | |||||
| 3 | C5981301 | Capillary Pref0rmed |
|
- | |||||
| 4 | B5159301 | Strainer |
|
- | |||||
| 6 | A4017201 | Seal Strip |
|
- | |||||
| 7 | B1114701 | Gasket-5.875`` |
|
- | |||||
| 8 | A4695402 | Clamp-muffler |
|
- | |||||
| 9 | C5885811 | Muffler |
|
- | |||||
| 10 | C5900410 | Tube-discharge |
|
- | |||||
| 11 | C5886105 | Tube-discharge |
|
- | |||||
| 12 | M0286201 | Speed Nut |
|
- | |||||
| 13 | B5117101 | Screen |
|
- | |||||
| 14 | A3030307 | Gasket |
|
- | |||||
| 15 | W11233072 | Use M0214931 (Replaces: M0211531) |
|
Immediately | $ 14.72 | ||||
| 16 | A4685101 | Clamp |
|
- | |||||
| 17 | D5480101 | Tube-sub Cooler |
|
- | |||||
| 18 | Y052721 | Nut (Replaces: M0281006) |
|
$ 24.95 |
