01 - Compressor Parts


02 - Condenser Parts


03 - Control Parts


04 - Evap & Action Air Parts


05 - Exterior Parts


06 - Interior Parts

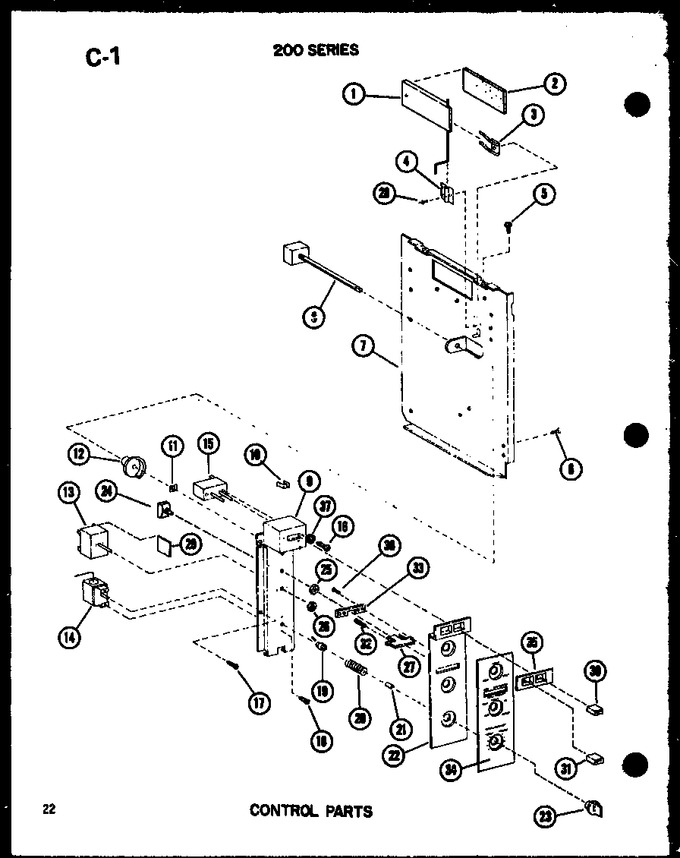

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C5236701		Damper Door		Appelez-nous	-
2	B5107601		Gasket		Appelez-nous	-
3	B4778002		Spring		Appelez-nous	-
4	A4598401		Clamp		Appelez-nous	-
5	M0211545		Screw		Appelez-nous	-
6	M0211530		Screw		Appelez-nous	-
7	D5349303		Panel, Access		Appelez-nous	-
8	B5109303		Damper Control		Appelez-nous	-
9	C5880101		Mtg Bracket-control		Appelez-nous	-
10	M0110503		Clip		Appelez-nous	-
11	M0287706		Nut		Appelez-nous	-
12	C5237901		Cam		Appelez-nous	-
13	B5171902		Switch		Appelez-nous	-
14	B4763504		Thermostat		Appelez-nous	-
15	B5128502		Switch		Appelez-nous	-
16	M0218116		Screw		Appelez-nous	-
17	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
18	M0232012		Screw		Appelez-nous	-
19	A3073601		Bushing		Appelez-nous	-
20	A4663604		Spring		Appelez-nous	-
21	YM0115901		Clip, Knob Mounting		Appelez-nous	-
22	C5879701		Escutcheon		Appelez-nous	-
23	D7009804		Knob		Appelez-nous	-
24	M0340101		Switch		Appelez-nous	-
25	M0281401		Nut A		Appelez-nous	-
26	M0289601		Palnut		Appelez-nous	-
27	B1106601		Button		Appelez-nous	-
28	A4639601		Insulation		Appelez-nous	-
29	A4662301		Insulator		Appelez-nous	-
30	B5127303		Button-off		Appelez-nous	-
31	B5127304		Button-on		Appelez-nous	-
32	M0775101		Spring		Appelez-nous	-
33	A4689601		Spring-retainer		Appelez-nous	-
34	C5881404		Thin Plate		Appelez-nous	-
35	A4690101		Thin Plate		Appelez-nous	-
36	M0229004		Screw		Appelez-nous	-
37	M0272402		Lock Washer		Appelez-nous	-
