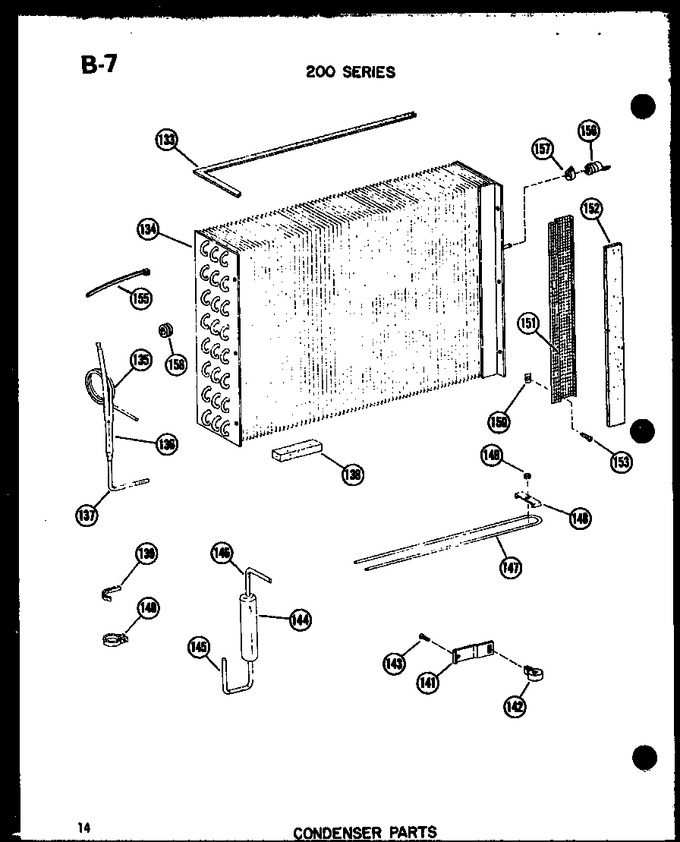

02 - Condenser Parts
03 - Control Parts
04 - Evap & Action Air Parts
05 - Exterior Parts
06 - Installation Kit Parts
07 - Interior Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 133 | A3030332 | Gasket-per Ft |
|
- | |||||
| 134 | D5508802 | Condenser Assy |
|
- | |||||
| 135 | C5981401 | Cap Tube |
|
- | |||||
| 136 | B5159301 | Strainer |
|
- | |||||
| 137 | A4637801 | X$x Process Tube |
|
- | |||||
| 138 | A4017201 | Seal Strip |
|
- | |||||
| 139 | B1114701 | Gasket-5.875`` |
|
- | |||||
| 140 | A4695401 | Clamp-muffler |
|
- | |||||
| 144 | C5885804 | Muffler |
|
- | |||||
| 145 | C5900410 | Tube-discharge |
|
- | |||||
| 146 | C5886101 | Tube, Discharge, Top |
|
- | |||||
| 147 | D5480101 | Tube-sub Cooler |
|
- | |||||
| 148 | A4685101 | Clamp |
|
- | |||||
| 149 | Y052721 | Nut (Replaces: M0281006) |
|
$ 24.95 | |||||
| 150 | M0286201 | Speed Nut |
|
- | |||||
| 151 | B5117101 | Screen |
|
- | |||||
| 152 | A3030307 | Gasket |
|
- | |||||
| 153 | M0211530 | Screw |
|
- | |||||
| 154 | A4696501 | Muffler Clamp Assy |
|
- | |||||
| 155 | M0321204 | Wire Tie |
|
- | |||||
| 158 | A3045501 | Grommet |
|
- |
