SELECT A DIAGRAM

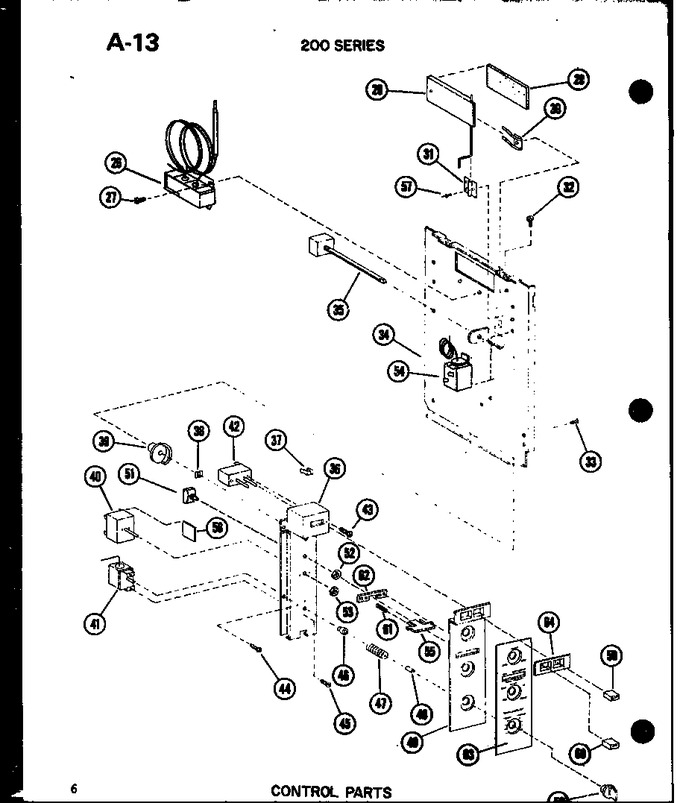

01 - Compressor Parts


02 - Condenser Parts


03 - Control Parts


04 - Evap & Action Air Parts


05 - Exterior Parts


06 - Installation Kit Parts


07 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
28	B5110701		Damper Door		Appelez-nous	-
29	B5107602		Gasket		Appelez-nous	-
30	B4778002		Spring		Appelez-nous	-
31	A4598401		Clamp		Appelez-nous	-
32	M0211545		Screw		Appelez-nous	-
33	M0211530		Screw		Appelez-nous	-
34	D5349303		Panel, Access		Appelez-nous	-
35	B5109303		Damper Control		Appelez-nous	-
36	C5880101		Mtg Bracket-control		Appelez-nous	-
37	M0110503		Clip		Appelez-nous	-
38	M0287706		Nut		Appelez-nous	-
39	C5237901		Cam		Appelez-nous	-
40	B5171902		Switch		Appelez-nous	-
41	B4763504		Thermostat		Appelez-nous	-
42	B5128502		Switch		Appelez-nous	-
43	M0218116		Screw		Appelez-nous	-
44	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
45	M0232012		Screw		Appelez-nous	-
46	A3073601		Bushing		Appelez-nous	-
47	A4663604		Spring		Appelez-nous	-
48	YM0115901		Clip, Knob Mounting		Appelez-nous	-
49	C5879701		Escutcheon		Appelez-nous	-
50	D7009804		Knob		Appelez-nous	-
51	M0340101		Switch		Appelez-nous	-
52	M0281401		Nut A		Appelez-nous	-
53	M0289701		Lock Nut		Appelez-nous	-
55	B1106601		Button		Appelez-nous	-
57	A4539601		Pop Rivet		Appelez-nous	-
58	A4662301		Insulator		Appelez-nous	-
59	B5127303		Button-off		Appelez-nous	-
60	B5127304		Button-on		Appelez-nous	-
61	M0775101		Spring		Appelez-nous	-
62	A4689601		Spring-retainer		Appelez-nous	-
63	C5881401		Thin Plate		Appelez-nous	-
64	A4690101		Thin Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
