SELECT A DIAGRAM

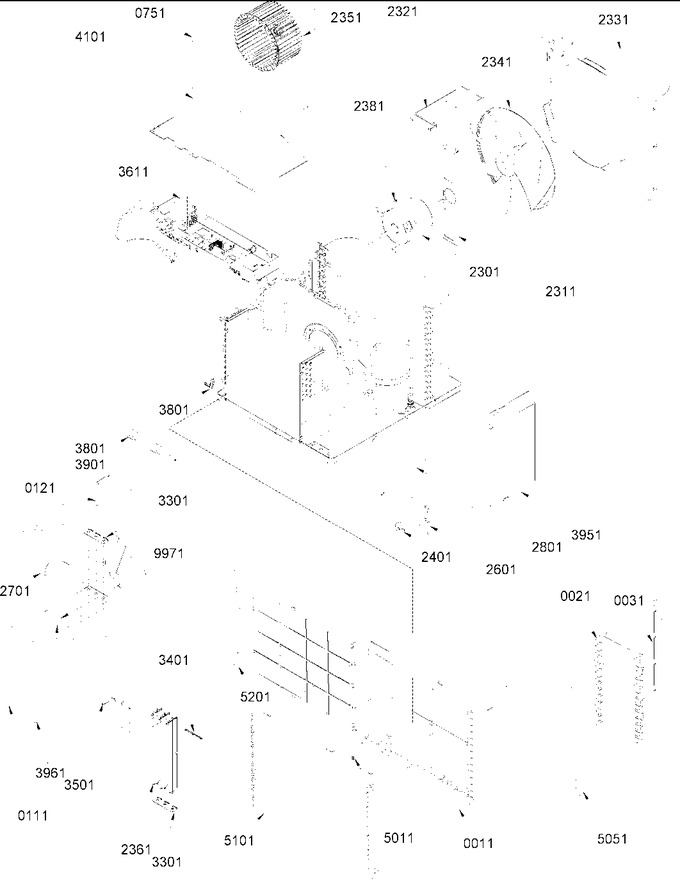

01 - Chassis & Outer Case Assembly


02 - Chassis Assembly


03 - Chassis Assembly


04 - Control Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	20051901		Front		Appelez-nous	-
21	20062301		Louver, Horizontal		Appelez-nous	-
31	Y20063501		Louver, Retainer		Appelez-nous	-
111	10839712		Gasket		Appelez-nous	-
121	10839713		Gasket (1=1ft.)		Appelez-nous	-
751	10839710		Gasket		Appelez-nous	-
2301	20080205		Motor-fan		Appelez-nous	-
2311	20072901		Brkt, Fan Motor		Appelez-nous	-
2321	20073101		Brace, Tie		Appelez-nous	-
2331	20073001		Shroud, Fan		Appelez-nous	-
2341	20071102		Fan, Condenser		Appelez-nous	-
2351	20071801		Wheel, Blower		Appelez-nous	-
2361	20074701		Louver, Vertical		Appelez-nous	-
2381	WP489427		Screw, Tap   (Replaces: M0224956)				$ 7.84
2401	20055502		Spring, Exh Door		Appelez-nous	-
2601	20051302		Door, Exhaust		Appelez-nous	-
2701	20067404		Scroll, Top		Appelez-nous	-
2801	Y20055607		Actuator, Exh Door		Appelez-nous	-
3301	20051502		Base, Pivot		Appelez-nous	-
3401	20075501		Bar, Lower Stabilizer		Appelez-nous	-
3501	20051404		Gang Bar, Vertical Louver		Appelez-nous	-
3611	20090302		Tie Strap		Appelez-nous	-
3801	20109401		Holder, T`stat Bulb		Appelez-nous	-
3901	20065401		Wire Form		Appelez-nous	-
3951	20072801		Panel, Right Side		Appelez-nous	-
3961	10839706		Gasket (per Foot)		Appelez-nous	-
4101	20091001		Cover, Top		Appelez-nous	-
5011	M0219730		Screw				$ 7.65
5051	10839701		Gasket 1.25 X .75		Appelez-nous	-
5101	20052001		Front, Insert		Appelez-nous	-
5201	20075301		Filter, 200		Appelez-nous	-
9971	10839705		Gasket (1=1ft.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
