SELECT A DIAGRAM

01 - Chassis & Outer Case Assembly

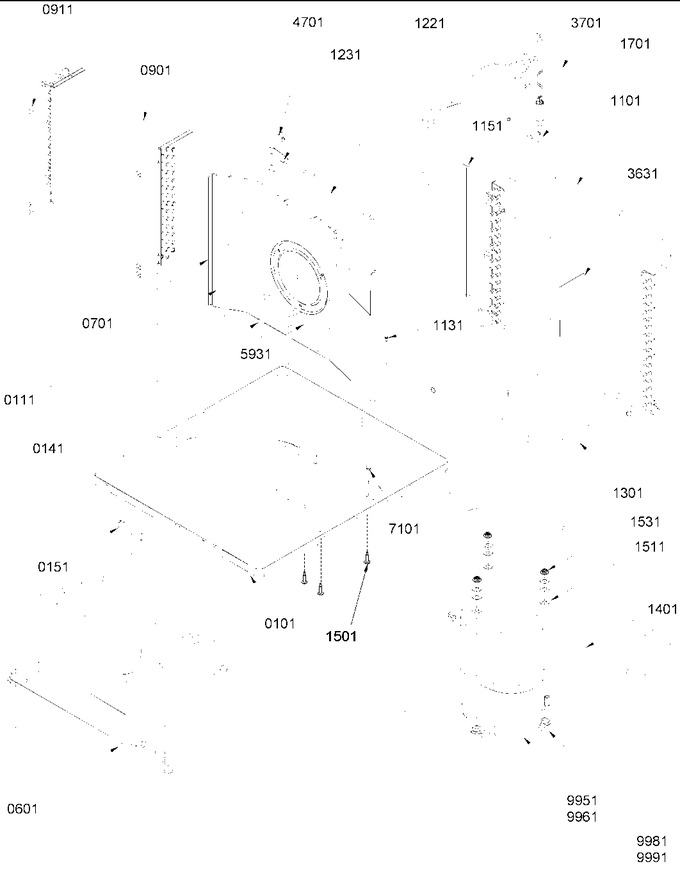

02 - Chassis Assembly


03 - Chassis Assembly


04 - Control Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	20067205		Basepan		Appelez-nous	-
111	10839712		Gasket		Appelez-nous	-
141	10839716		Gasket 1/2 By 3/8		Appelez-nous	-
151	20088701		Handle, Basepan		Appelez-nous	-
601	20067302		Scroll, Bottom		Appelez-nous	-
701	20067604		Pnl, Partition		Appelez-nous	-
901	20074801		Assy, Evaporator		Appelez-nous	-
911	M0586001		Screw		Appelez-nous	-
1101	20086202		Assy, Condenser (14-29)		Appelez-nous	-
1131	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
1151	Y20065009		Seal Strip, Outer		Appelez-nous	-
1221	20093601		Tie, Compressor		Appelez-nous	-
1231	20093701		Bracket, Comp. Tie		Appelez-nous	-
1301	20095602		Weld, Suction Tube		Appelez-nous	-
1401	20094701		Tube, Discharge		Appelez-nous	-
1501	20109101		Bolt, Shoulder		Appelez-nous	-
1511	M0274071		Washer, Flat		Appelez-nous	-
1531	20103302		Nut, Flange		Appelez-nous	-
1701	20079801		Assy, Capillary		Appelez-nous	-
3631	20089901		Baffle, Condensate		Appelez-nous	-
3701	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
4701	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
5931	10839727		Gasket, Foam		Appelez-nous	-
7101	M0311109		Plug, Metal Hole		Appelez-nous	-
9951	10720801		Cover, Term		Appelez-nous	-
9961	10720601		Gasket, Term. Cover		Appelez-nous	-
9981	B1315401		Grommet		Appelez-nous	-
9991	20091802		Compressor H23b22sabcx		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
