SELECT A DIAGRAM

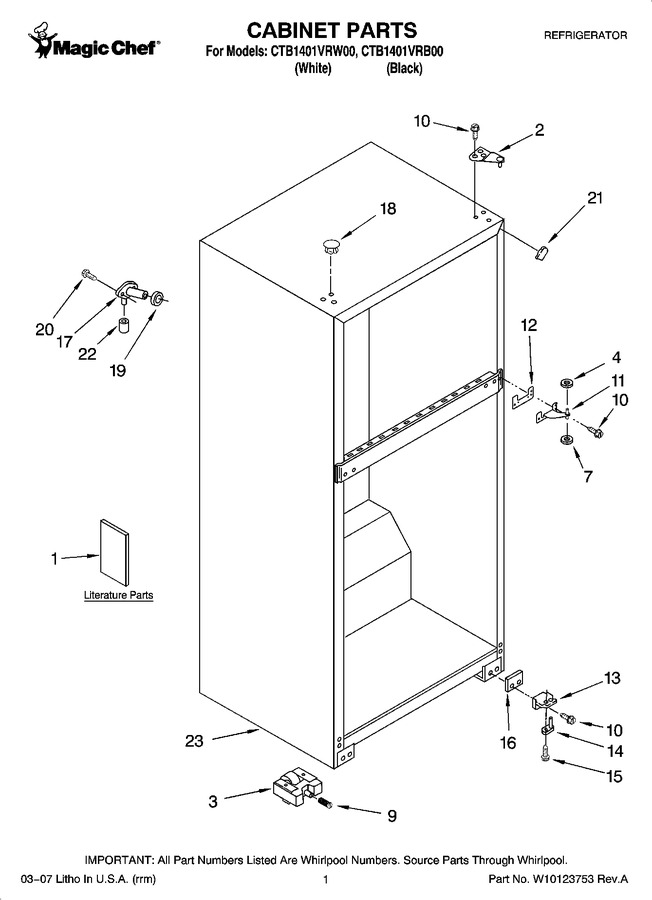

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2265209 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2326170 | Energy Label |
|
- | |||||
| 1 | 2326133 | Use & Care Guide |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | 2324094 | Roller-front |
|
$ 342.09 | |||||
| 4 | WP487802 | Washer (7/64) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 7 | WP487576 | Washer (1/16) (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 9 | 2222100 | Screw |
|
$ 99.81 | |||||
| 10 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 11 | WP2166037 | Hinge, Center (Replaces: 2166037) |
|
$ 78.16 | |||||
| 12 | 2166043 | Shim, Hinge Center (Replaces: 2183143) |
|
$ 66.44 | |||||
| 13 | WP2325482 | Hinge Butt, Btm (Replaces: 2221926) |
|
Immediately | $ 76.19 | ||||
| 14 | 9791682 | Hinge-pin, Btm |
|
$ 26.60 | |||||
| 15 | WP3428970 | Screw (Replaces: 3428970) |
|
$ 10.91 | |||||
| 16 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 7.77 | ||||
| 17 | WP2196157 | Fitting, Water Tube (Replaces: 2174760) |
|
Immediately | $ 11.99 | ||||
| 18 | WP2183998 | Hole Plug (6) (black) (Replaces: 2183998) |
|
$ 18.10 | |||||
| 18 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 21.78 | |||||
| 19 | WP1106508 | Seal (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 20 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.79 | ||||
| 21 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 7.70 | |||||
| 21 | W11500943 | Corner Filler (black) (Replaces: 2215384) |
|
$ 7.60 | |||||
| 22 | WP487996 | Cap, Bushing (Replaces: 487996) |
|
$ 8.26 |
