SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts

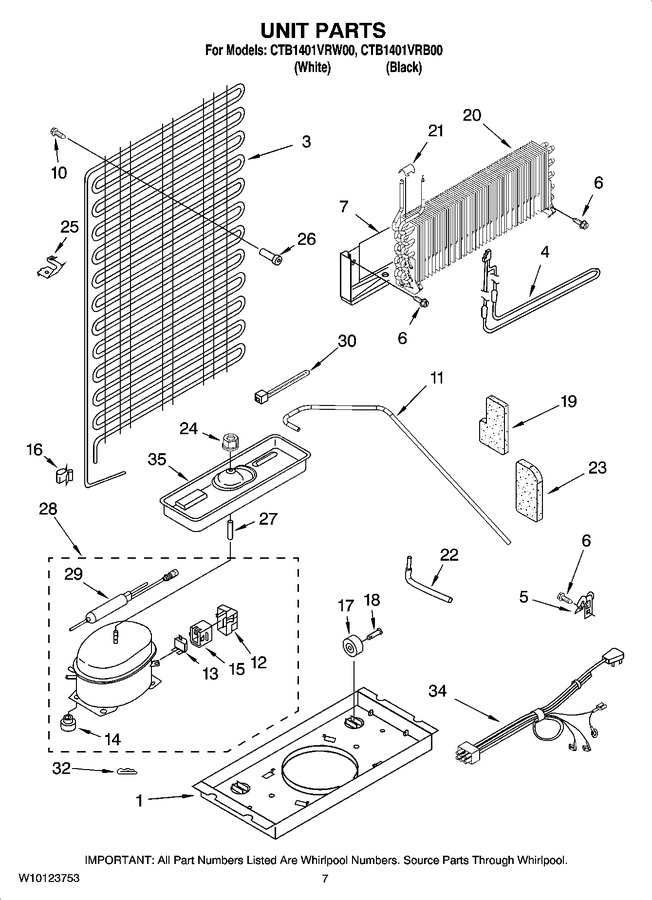

04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2221886		Support Plate, Compressor		Appelez-nous	-
3	WP2252730		Condenser   (Replaces: 2252730)				$ 273.61
4	WP2263749		Heater, Defrost   (Replaces: 2263749)			Immediately	$ 93.70
5	549193		Clamp,cord				$ 13.39
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
7	2319224		Heat Shield				$ 116.21
10	8533892		Screw		Appelez-nous	-
11	2264563		Tube, Discharge		Appelez-nous	-
12	WP2162358		Cover, Terminal (production)   (Replaces: 2162358)				$ 90.75
12	WP2162358		Cover, Terminal (service)   (Replaces: 4387731)				$ 90.75
13	WP2149959		Overload (production)   (Replaces: 2149959)				$ 133.39
13	WP4387938		Overload (service (includes Relay)   (Replaces: 4387938)				$ 189.12
14	WP2163786		Grommet (production)   (Replaces: 2222084)				$ 7.96
14	WP4387558		Grommet (service)   (Replaces: 4387558)				$ 6.95
15	WP2258450		Relay Production Only (service See Overload)   (Replaces: 2258450)				$ 112.82
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
18	WP2264756		Rivet-axle   (Replaces: 2264756)				$ 7.19
19	2262191		Wedge-evap.		Appelez-nous	-
20	WP2263919		Evaporator Assy.   (Replaces: 2263919)				$ 309.15
21	9791833		Clip		Appelez-nous	-
22	2320728		Tube, Process		Appelez-nous	-
23	2262192		Wedge, Evaporator		Appelez-nous	-
24	285002		Hex Nut   (Replaces: 489153)				$ 12.24
25	4386951		Clip, Condenser Mounting   (Replaces: 2172892)		Appelez-nous	-
26	2258452		Bracket, Condenser		Appelez-nous	-
27	2176844		Spacer		Appelez-nous	-
28	W10823815		Compressor (includes Items 12,13,14 & 29) (also Order 482801 Installation Kit & 876765 Tube Kit)   (Replaces: 2258449)				$ 674.15
29	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
30	WPW10339879		Strap   (Replaces: 2263990)				$ 7.90
32	24364001		Clip, Compressor		Appelez-nous	-
34	2202155		Wire Assembly Unit		Appelez-nous	-
35	876764		Valve, Access(3/16``)			Immediately	$ 91.35
35	978028		Valve, Access (1/2``)		Appelez-nous	-
35	978029		Valve, Access (5/8``)				$ 93.85
35	978030		Valve, Access (3/4``)				$ 130.71
35	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
35	2176668		Tray,evaporator				$ 77.40
35	12658531CQ		Door, Refrigerator (bisque)   (Replaces: 67004505)		Appelez-nous	-
35	978026		Valve, Access (5/16``)			Immediately	$ 128.09
35	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
