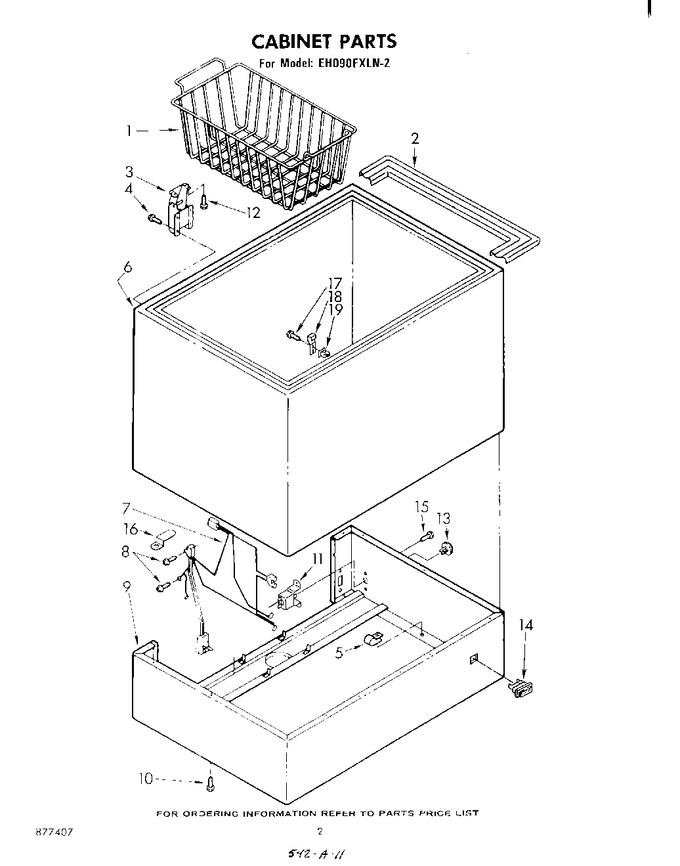

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 727489 | Basket |
|
- | |||||
| 2 | 727345 | Collar Breaker |
|
- | |||||
| 3 | 727353 | Hinge |
|
- | |||||
| 4 | 681574 | Screw (6) |
|
- | |||||
| 5 | 596171 | Clamp, Wire |
|
- | |||||
| 6 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 7 | 589824 | Harness, Wiring |
|
- | |||||
| 8 | 595325 | Screw |
|
- | |||||
| 9 | 727005 | Base |
|
- | |||||
| 10 | WP489069 | Screw (12) (Replaces: 681600) |
|
Immediately | $ 8.40 | ||||
| 11 | 589929 | Control |
|
- | |||||
| 12 | 681438 | Screw (6) |
|
- | |||||
| 13 | 727020 | Knob, Control |
|
- | |||||
| 14 | 556230 | Light, Indicator |
|
- | |||||
| 15 | 595022 | Screw |
|
- | |||||
| 16 | 653035 | Clip, Plug Holding |
|
- | |||||
| 17 | WP487353 | Screw (Replaces: 681591) |
|
$ 7.95 | |||||
| 18 | 727274 | Strike, Lock |
|
- | |||||
| 19 | 877407 | List, Parts |
|
- | |||||
| 19 | WP505587 | Sealer, Master (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 19 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 19 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 19 | 350956 | Enamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | |||||
| 19 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 19 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 19 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 19 | 482278 | Compressor Start Kit |
|
- | |||||
| 19 | 656493 | Book, How |
|
- | |||||
| 19 | 727697 | Use & Care Guide |
|
- | |||||
| 19 | 727585 | Energy Guide |
|
- | |||||
| 19 | 727586 | Tech Sheet |
|
- | |||||
| 19 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 19 | 842339 | Grommet |
|
- | |||||
| 19 | 350942 | Primer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 94.14 | |||||
| 19 | 206925 | Leveler, Enamel (12 Oz. Spray Can) |
|
- | |||||
| 19 | 350930 | Enamel, White (12 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 40.12 | ||||
| 19 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 19 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 19 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 19 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 19 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 82.13 | ||||
| 19 | 588599 | Kit, Insulation (door Only) |
|
- | |||||
| 19 | WP279368 | Cement, Rubber (5 Oz. Tube) (Replaces: 279097) |
|
Immediately | $ 116.46 | ||||
| 19 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 116.46 | ||||
| 19 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 19 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 19 | 978028 | Valve, Access (1/2) |
|
- |
