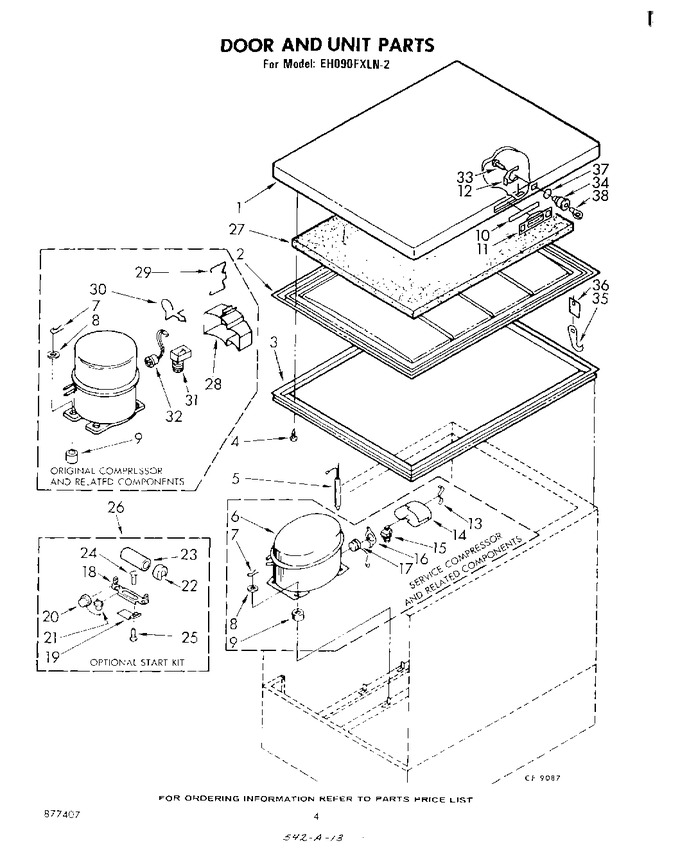

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 727339 | Door |
|
- | |||||
| 2 | 727703 | Panel |
|
- | |||||
| 3 | 727468 | Gasket |
|
- | |||||
| 4 | 596693 | Clip (44) |
|
- | |||||
| 5 | W10843121 | Drier (Replaces: 727196) |
|
Immediately | $ 57.13 | ||||
| 6 | DE81-08890A | Compressor (includes Items 13, 14, 15, 16 & 17) (Replaces: 702219) |
|
$ 153.93 | |||||
| 7 | 596712 | Clip (4) |
|
- | |||||
| 8 | 680975 | Washer (4) |
|
- | |||||
| 9 | 596355 | Grommet (4) |
|
- | |||||
| 10 | 589208 | Gasket, Handle |
|
- | |||||
| 11 | 589376 | Handle, Snap-in |
|
- | |||||
| 12 | 586335 | Clip, Lock |
|
- | |||||
| 13 | 560850 | Strap, Cover (used W/service Compressor) |
|
- | |||||
| 14 | 560849 | Cover (used W/service Compressor) |
|
- | |||||
| 15 | 727308 | Relay (used W/service Compressor) |
|
- | |||||
| 16 | 560851 | Spring, Overload (used W/service Compressor) |
|
- | |||||
| 17 | 727309 | Overload (used W/service Compressor) |
|
- | |||||
| 18 | 482158 | Bracket, Capacitor (used On Start Kit 482278) |
|
- | |||||
| 19 | 549939 | Bracket, Support (used On Start Kit 482278) |
|
- | |||||
| 20 | 482280 | Overload (used On Start Kit 482278) |
|
- | |||||
| 21 | 482279 | Relay (used On Start Kit 482278) |
|
- | |||||
| 22 | 482157 | Cap, Capacitor (used On Start Kit 482278) |
|
- | |||||
| 23 | WP482156 | Capacitor (used On Start Kit 482278) (Replaces: 482156) |
|
$ 113.33 | |||||
| 24 | 487631 | Screw (2) (used On Start Kit 482278) |
|
- | |||||
| 25 | 488487 | Screw (used On Start Kit 482278) |
|
- | |||||
| 26 | 482278 | Start Kit |
|
- | |||||
| 27 | 588599 | Kit, Insulation (door Only) |
|
- | |||||
| 28 | 727044 | Cover, Overload & Relay (w/original Compressor) |
|
- | |||||
| 29 | 727045 | Clamp, Cover (w/original Compressor) |
|
- | |||||
| 30 | 727046 | Clip (used W/original Compressor) |
|
- | |||||
| 31 | 727598 | Relay (w/original Compressor) |
|
- | |||||
| 32 | 727599 | Overload (w/original Compressor) |
|
- | |||||
| 33 | 680483 | Screw |
|
- | |||||
| 34 | 727243 | Lock |
|
- | |||||
| 35 | 727300 | Hook, Lock |
|
- | |||||
| 36 | 727438 | Shroud, Lock |
|
- | |||||
| 37 | 753610 | ``o`` Ring |
|
- | |||||
| 38 | WP842177 | Key (Replaces: 842177) |
|
$ 8.51 |
