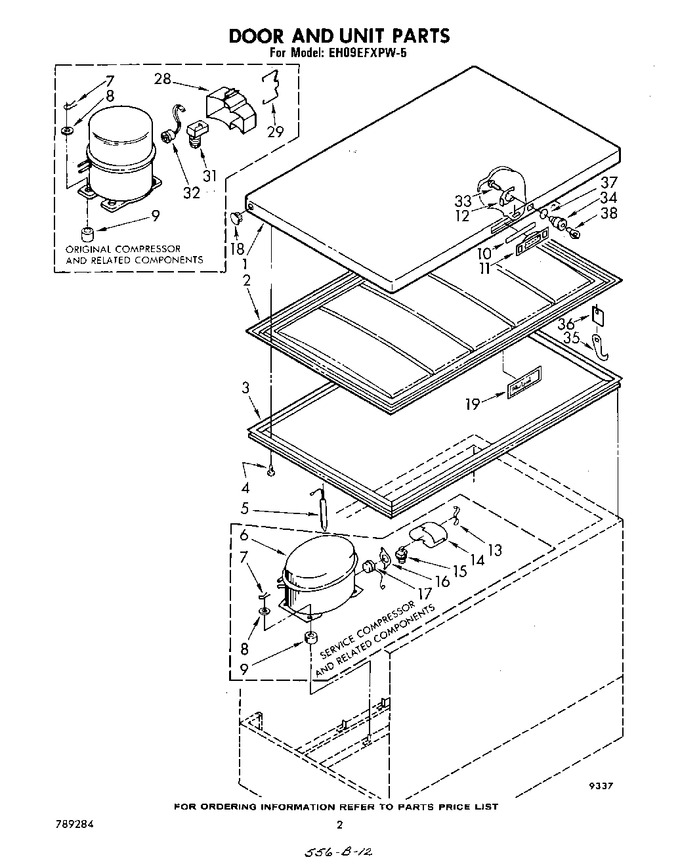

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 730204 | Door |
|
- | |||||
| 2 | 730094 | Panel |
|
- | |||||
| 3 | 730120 | Gasket |
|
- | |||||
| 4 | 596787 | Clip (44) |
|
- | |||||
| 5 | 728582 | Drier |
|
- | |||||
| 6 | 482736 | Compressor (includes Items 13, 14, 15, 16 & 17) |
|
- | |||||
| 7 | 596798 | Clip (4) |
|
- | |||||
| 8 | 680975 | Washer (4) |
|
- | |||||
| 9 | 876811 | Grommet (4) (Replaces: 592185) |
|
$ 7.79 | |||||
| 10 | 727809 | Gasket, Handle |
|
- | |||||
| 11 | 730079 | Handle, Snap-in |
|
- | |||||
| 12 | 586335 | Clip, Lock |
|
- | |||||
| 13 | 549342 | Strap, Cover (used W/service Compressor) |
|
- | |||||
| 14 | 549336 | Cover (used W/service Compressor) |
|
- | |||||
| 15 | 989646 | Relay (used W/service Compressor) |
|
- | |||||
| 16 | 549086 | Spring, Overload (used W/service Compressor) |
|
- | |||||
| 17 | 941778 | Overload (used W/service Compressor) |
|
- | |||||
| 18 | 534927 | Plug, Hole |
|
- | |||||
| 19 | 730080 | Decal (estate Series) |
|
- | |||||
| 28 | 1105015 | Cover, Terminal (used W/original Compressor) |
|
- | |||||
| 29 | 938384 | Clamp, Cover (w/original Compressor) |
|
- | |||||
| 31 | 938385 | Relay (w/original Compressor) |
|
- | |||||
| 32 | QT236WWN | Overload (w/original Compressor) (Replaces: 753611) |
|
$ 302.49 | |||||
| 33 | 680483 | Screw |
|
- | |||||
| 34 | 727243 | Lock |
|
- | |||||
| 35 | 727300 | Hook, Lock |
|
- | |||||
| 36 | 727701 | Shroud, Lock |
|
- | |||||
| 37 | 753610 | ``o`` Ring |
|
- | |||||
| 38 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 38 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 38 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 38 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 38 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 38 | WP279368 | Cement, Rubber (5 Oz. Tube) (Replaces: 279097) |
|
Immediately | $ 116.46 | ||||
| 38 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 116.46 | ||||
| 38 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 38 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 38 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 38 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 38 | WP842177 | Key (Replaces: 842177) |
|
$ 8.51 | |||||
| 38 | 350942 | Primer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 94.14 | |||||
| 38 | 206925 | Leveler, Enamel (12 Oz. Spray Can) |
|
- | |||||
| 38 | 350930 | Enamel, White (12 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 40.12 | ||||
| 38 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 38 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 38 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 82.13 | ||||
| 38 | 588599 | Kit, Insulation (door Only) |
|
- | |||||
| LIT730047 | Use & Care Guide |
|
- | ||||||
| LIT789284 | List, Parts |
|
- | ||||||
| LIT728839 | Sheet, Tech |
|
- | ||||||
| LIT730081 | Energy Guide |
|
- | ||||||
| LIT656493 | Book, How |
|
- |
