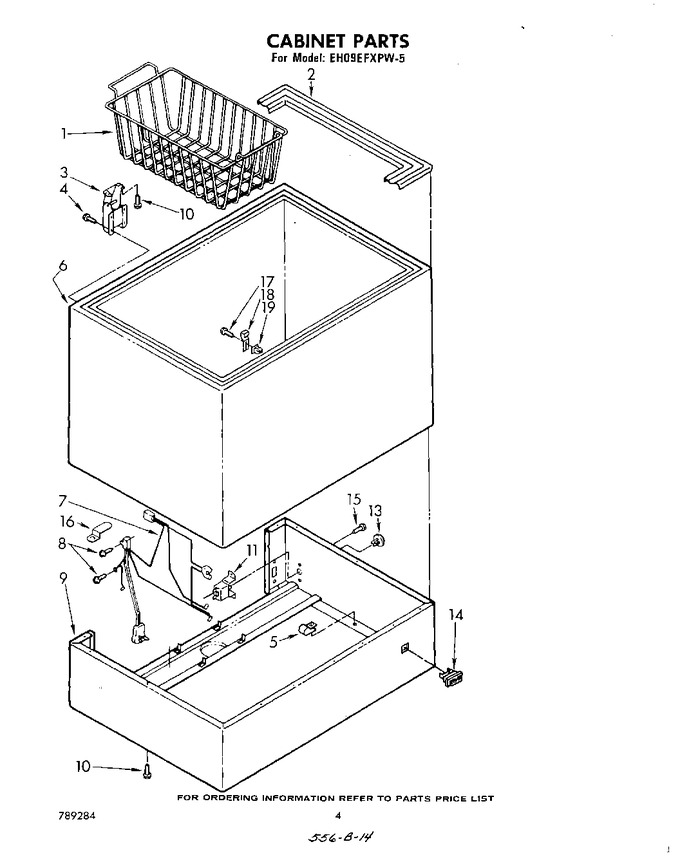

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 730213 | Basket |
|
- | |||||
| 2 | 589411 | Collar Breaker |
|
- | |||||
| 3 | 589099 | Hinge |
|
- | |||||
| 4 | 681574 | Screw (6) |
|
- | |||||
| 5 | 596171 | Clamp, Wire |
|
- | |||||
| 6 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 7 | 589824 | Harness, Wiring |
|
- | |||||
| 8 | 595325 | Screw |
|
- | |||||
| 9 | 589822 | Base |
|
- | |||||
| 10 | 681668 | Screw (12) |
|
- | |||||
| 11 | 727194 | Control |
|
- | |||||
| 13 | 554577 | Knob, Control |
|
- | |||||
| 14 | 556230 | Light, Indicator |
|
- | |||||
| 15 | 595022 | Screw |
|
- | |||||
| 16 | 653035 | Clip, Plug Holding |
|
- | |||||
| 17 | WP487353 | Screw (Replaces: 681591) |
|
$ 7.95 | |||||
| 18 | 727274 | Strike, Lock |
|
- | |||||
| 19 | 842339 | Grommet |
|
- |
