SELECT A DIAGRAM

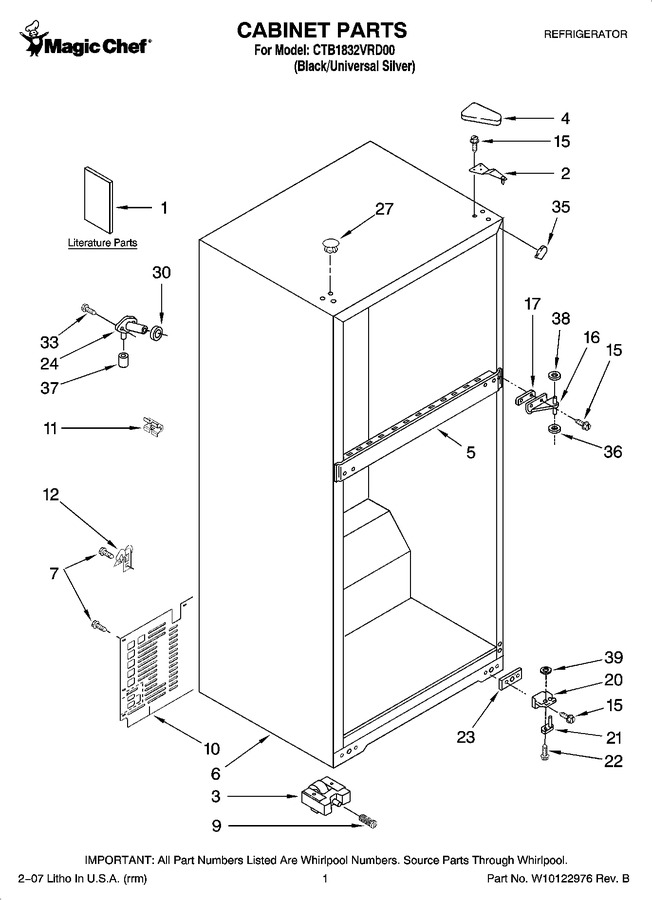

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2326133		Use & Care Guide		Appelez-nous	-
1	677969		Do-it-yourself Manual Ref./frz.				$ 30.30
1	2265591		Service & Wiring Sheet		Appelez-nous	-
1	2326126		Energy Label		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2261963)			Immediately	$ 99.45
3	2324094		Roller-front				$ 342.09
4	WP2213363		Cover, Hinge   (Replaces: 2213363)			Immediately	$ 18.21
7	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
9	2222100		Screw				$ 99.81
10	WP2264132		Cover, Unit   (Replaces: 2264132)				$ 108.35
11	2266506		Spacer-back-cb				$ 13.70
12	549193		Clamp,cord				$ 13.39
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 78.16
17	2215385		Shim, Hinge Center				$ 86.99
20	WP2325482		Hinge Butt   (Replaces: 2221926)			Immediately	$ 76.19
21	9791682		Hinge-pin, Bottom				$ 26.60
22	WP3428970		Screw   (Replaces: 3428970)				$ 10.91
23	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.77
24	WP2196157		Fitting, Water Tube   (Replaces: 2174760)			Immediately	$ 11.99
27	WP2183998		Hole Plug (6)   (Replaces: 2183998)				$ 18.10
30	WP1106508		Seal   (Replaces: 1106508)			Immediately	$ 9.93
33	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.79
35	W11500943		Corner Filler   (Replaces: 2215384)				$ 7.60
36	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
37	WP487996		Cap, Bushing   (Replaces: 487996)				$ 8.26
38	WP487802		Washer   (Replaces: 487802)			Immediately	$ 7.91
39	WP488296		Washer   (Replaces: 488296)				$ 7.19

    View Diagram in Separate Window       Print Part List
