View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

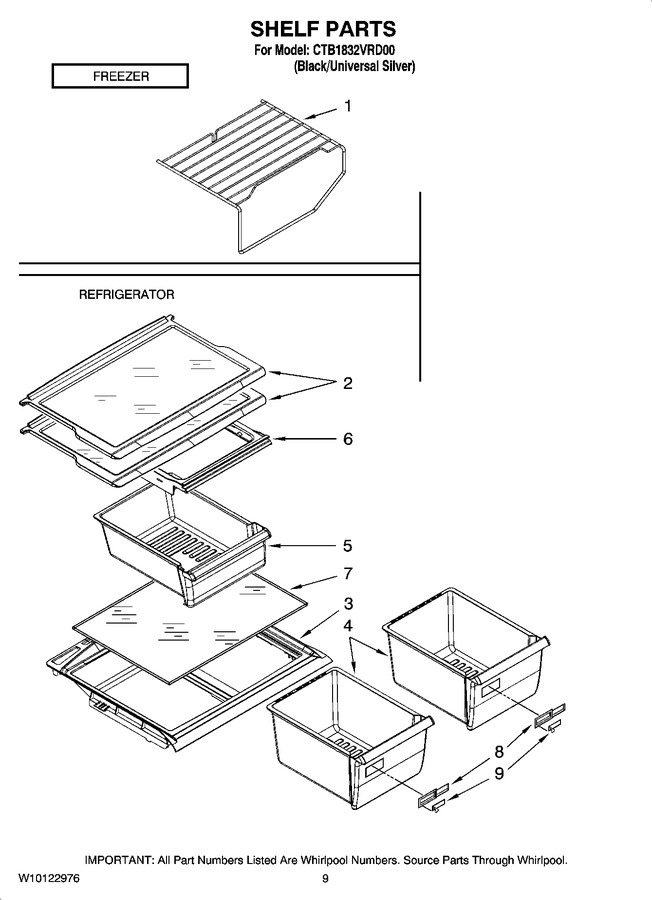

| 1 | WPW10401596 | Shelf, Ice Tray (Replaces: 2262654) |
|
$ 82.28 | |||||
| 2 | W10837901 | Shelf (Replaces: 2263641) |
|
$ 253.61 | |||||
| 3 | WP2192250 | Crisper Cover (Replaces: 2192250) |
|
Immediately | $ 184.03 | ||||
| 4 | W10804447 | Crisper Pan (includes 8 & 9) (Replaces: 2252932) |
|
Immediately | $ 165.88 | ||||
| 5 | 2207936 | Pan, Meat |
|
- | |||||
| 6 | 2262686 | Holder, Meat Pan |
|
- | |||||
| 7 | WP2210047 | Glass, Cover (Replaces: 2210047) |
|
Immediately | $ 206.97 | ||||
| 8 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 15.06 | |||||
| 9 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 72032 | Customer Touch-up Material (brush Touch-up Kit (black)) |
|
Immediately | $ 18.69 | |||||
| 799832 | Kit, Porcelain Repair (white) |
|
- | ||||||
| 350942 | Customer Touch-up Material (primer, White (12 Oz. Spray Can)) |
|
$ 94.14 | ||||||
| 285006 | Customer Touch-up Material (enamel, Black (12 Oz. Spray Can)) (Replaces: 350939) |
|
$ 59.89 | ||||||
| 350930 | Customer Touch-up Material (enamel, White (12 Oz. Spray Can)) |
|
Immediately | $ 40.12 | |||||
| 253886 | Wire |
|
- | ||||||
| 799344 | Enamel, White (1 Qt. Uncut) |
|
$ 237.46 | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.47 | ||||||
| W11729596 | Field Installable Ice Maker (eckmf94) (Replaces: 2155469) |
|
Immediately | $ 150.98 | |||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl(3/4 X 108``) |
|
$ 66.77 | ||||||
| 72017 | [customer Touch-up Material (brush Touch-up Kit (white)) |
|
Immediately | $ 12.30 | |||||
| 876370 | Kit, Insulation (2 Pcs.3`` X 24 `` X 48``) |
|
$ 243.14 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``) |
|
- | ||||||
| 511873 | Touch-up, White Porcelain (2 Oz.) |
|
$ 51.75 | ||||||
| 606755 | Bag, Insulation(36-5/8`` X 46``) |
|
$ 82.37 | ||||||
| WP503695 | Cork Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | ||||||
| 542639 | Cement, Alumilastic (1-1/4 Oz.) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz) (Replaces: 542638) |
|
Immediately | $ 12.18 | |||||
| WP505587 | Sealer, Mastic (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 173.95 | |||||
| 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | ||||||
| 876370 | Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- |
