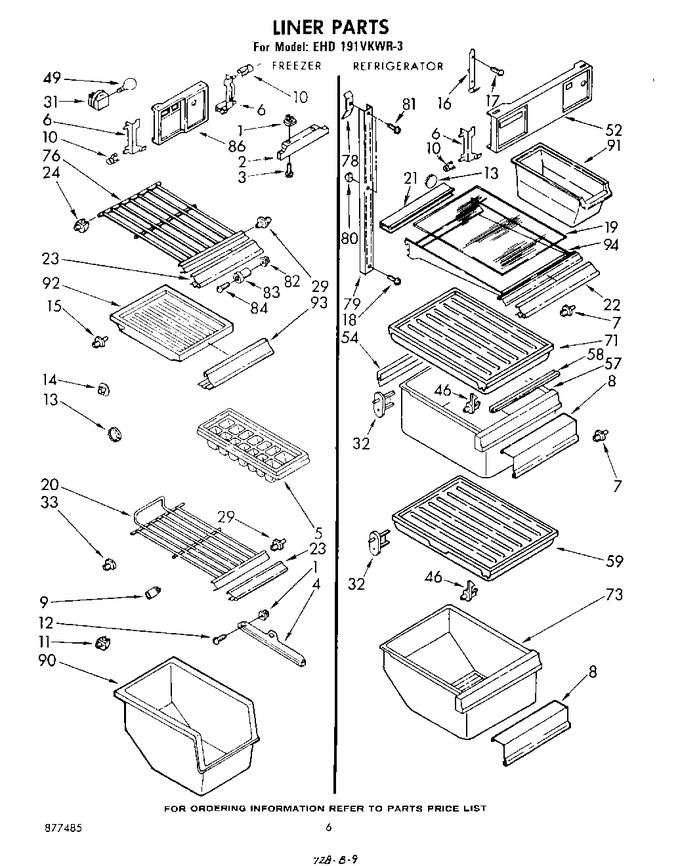

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 842339 | Grommet |
|
- | |||||
| 2 | 836216 | Baffle, Liner Top |
|
- | |||||
| 3 | WP489069 | Screw (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 4 | 982321 | Slide, Freezer Bin (2) |
|
- | |||||
| 5 | WP841180A | Ice Cube Tray (2) (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 6 | 842355 | Support, Light Lens (r.s.) |
|
- | |||||
| 6 | 842356 | Support, Light Lens (l.s.) (2) |
|
- | |||||
| 7 | 536475 | Stud, Shelf (4) |
|
$ 7.28 | |||||
| 8 | 988255 | Overlay, Pan |
|
- | |||||
| 9 | 533881 | Grommet (2) |
|
- | |||||
| 10 | 843945 | Clip, Tubular (6) |
|
- | |||||
| 11 | 210518 | Support, Shelf (2) |
|
- | |||||
| 12 | 487979 | Screw, 8 X 1 |
|
- | |||||
| 13 | 519890 | Plug, Hole (5) |
|
- | |||||
| 14 | 659598 | Plug, Hole (2) |
|
- | |||||
| 15 | 521878 | Stud, Shelf (3) |
|
- | |||||
| 16 | 984552 | Support, Light Lens (r.s.) |
|
- | |||||
| 17 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 18 | 488960 | Screw, 8-32 X 1-1/4 (2) |
|
- | |||||
| 18 | 488980 | Screw (repair) |
|
- | |||||
| 19 | 936837 | Glass, Shelf |
|
- | |||||
| 20 | 992343 | Shelf, Ice Pan (2) |
|
- | |||||
| 21 | 936838 | Retainer, Glass Shelf |
|
- | |||||
| 22 | 935337 | Trim, Shelf Front |
|
- | |||||
| 23 | 849263 | Trim, Shelf Front |
|
- | |||||
| 24 | 523264 | Stud, Saddle (l.s.) (2) |
|
- | |||||
| 24 | 523263 | Stud, Saddle (r.s.) (2) |
|
- | |||||
| 29 | 529758 | Stud, Shelf (8) |
|
- | |||||
| 31 | 4387478 | Socket (Replaces: 851067) |
|
Immediately | $ 115.67 | ||||
| 32 | 845986 | Stud, Shelf (2) |
|
- | |||||
| 33 | 512900 | Stud, Retainer (2) |
|
- | |||||
| 46 | 652675 | Stud, Shelf (2) |
|
- | |||||
| 49 | 8009 | Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 52 | 943218 | Lens, Refrigerator Light |
|
- | |||||
| 54 | 987420 | Gasket, Crisper (rear) |
|
- | |||||
| 57 | 935313 | Pan, Crisper |
|
- | |||||
| 58 | 987419 | Gasket, Crisper (front) |
|
- | |||||
| 59 | 945338 | Slide & Cover Meat Pan (frost Ivory) |
|
- | |||||
| 71 | 936584 | Slide & Cover, Crisper Pan (light Smoke) |
|
- | |||||
| 73 | 935315 | Pan, Meat |
|
- | |||||
| 76 | 992342 | Shelf (2) |
|
- | |||||
| 78 | 983604 | Anchor (4) |
|
- | |||||
| 79 | 934264 | Ladder (2) |
|
- | |||||
| 80 | 520965 | Support, Ladder (6) |
|
$ 31.35 | |||||
| 81 | 488357 | Screw, 8 X 1-1/4 (4) |
|
- | |||||
| 82 | 538449 | Grommet |
|
- | |||||
| 83 | 658944 | Stud, Shelf |
|
- | |||||
| 84 | 487559 | Screw, 8-15 X 1-1/4 |
|
- | |||||
| 86 | 985456 | Lens, Freezer Light |
|
- | |||||
| 90 | 935319 | Bin, Freezer |
|
- | |||||
| 91 | WP982704 | Container Utility (Replaces: 935139) |
|
$ 32.55 | |||||
| 92 | 935318 | Shelf, Solid |
|
- | |||||
| 93 | 841025 | Trim, Shelf |
|
- | |||||
| 94 | 936796 | Shelf, Cantilever (4) |
|
- |
