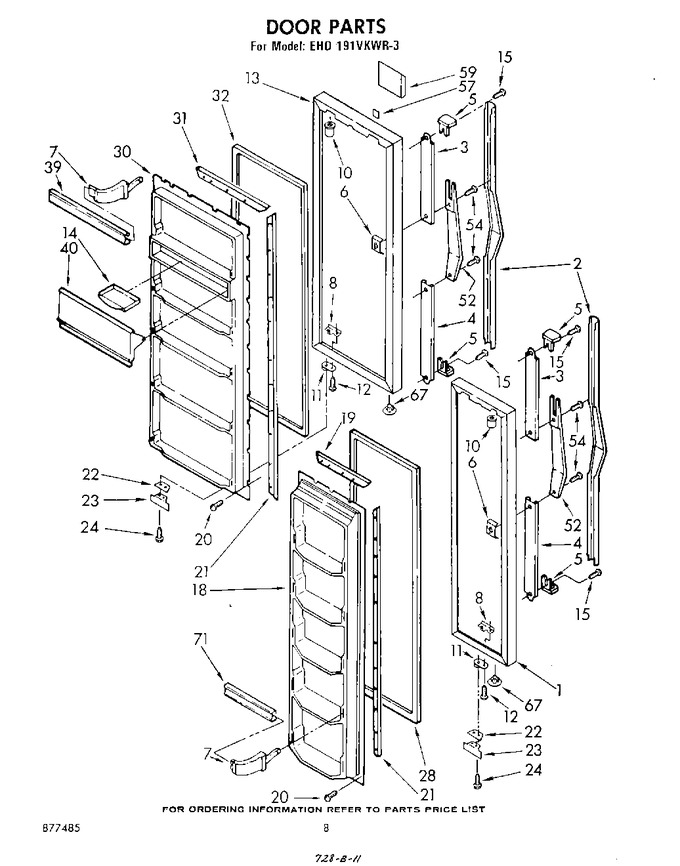

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet
03 - Airflow And Control
04 - Liner
05 - Door , Lit/optional
06 - Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 936639 | Door, Freezer (white) |
|
- | |||||
| 1 | 936643 | Door, Freezer (almond) |
|
- | |||||
| 1 | 936641 | Door, Freezer (golden Harvest) |
|
- | |||||
| 1 | 936642 | Door, Freezer (new Avocado) |
|
- | |||||
| 1 | 936640 | Door, Freezer (coffee) |
|
- | |||||
| 2 | 845889 | Insert, Handle (new Avocado) |
|
- | |||||
| 2 | 845888 | Insert, Handle (white, Coffee, & Almond) |
|
- | |||||
| 2 | 845890 | Insert, Handle (golden Harvest) |
|
- | |||||
| 3 | 987008 | Retainer, Top |
|
- | |||||
| 4 | 987010 | Retainer, Bottom |
|
- | |||||
| 5 | 987006 | Cap, Handle (2) |
|
- | |||||
| 6 | WP939101 | Screw Anchor (4) (Replaces: 939101) |
|
$ 7.88 | |||||
| 7 | WP849996 | Cap, End (10) (Replaces: 943824) |
|
$ 7.95 | |||||
| 8 | 988402 | Tap Plate, Door Closer |
|
- | |||||
| 10 | 509929 | Cap, Hinge (2) |
|
- | |||||
| 11 | 4318165 | Cam, Door Closer (Replaces: 986758) |
|
Immediately | $ 29.74 | ||||
| 12 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 8.40 | ||||
| 13 | 936636 | Door, Refrigerator (almond) |
|
- | |||||
| 13 | 936634 | Door, Refrigerator (golden Harvest) |
|
- | |||||
| 13 | 936632 | Door, Refrigerator (white) |
|
- | |||||
| 13 | 936633 | Door, Refrigerator (coffee) |
|
- | |||||
| 13 | 936635 | Door, Refrigerator (new Avocado) |
|
- | |||||
| 14 | 520747 | Tray, Butter |
|
- | |||||
| 15 | 488928 | Screw, 10-32 X 5/8 |
|
- | |||||
| 18 | 943828 | Panel, Interior |
|
- | |||||
| 19 | 836122 | Retainer, Top & Bottom (2) |
|
- | |||||
| 20 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 20 | WP489069 | Screw, 7 X 1/2 (Replaces: 489089) |
|
Immediately | $ 8.40 | ||||
| 21 | 836120 | Retainer, Side Gasket (2) |
|
- | |||||
| 22 | 988421 | Shim |
|
- | |||||
| 23 | 988420 | Bracket, Door Stop |
|
- | |||||
| 24 | 488549 | Screw, 8 X 5/8 |
|
- | |||||
| 28 | 2188405A | Gasket, Freezer Door (Replaces: 943221) |
|
$ 368.63 | |||||
| 30 | 943827 | Panel, Interior |
|
- | |||||
| 31 | 836121 | Retainer, Top & Bottom Gasket (2) |
|
- | |||||
| 32 | 2188404A | Gasket, Refrigerator Door (Replaces: 943220) |
|
$ 269.26 | |||||
| 39 | 849806 | Trim, Shelf (5) |
|
- | |||||
| 40 | 935322 | Door, Compartment |
|
- | |||||
| 52 | 987009 | Handle |
|
- | |||||
| 54 | W11624204 | Screw, 8 X 1/2 (2) (Replaces: 486194) |
|
$ 14.72 | |||||
| 57 | 991259 | Tape |
|
- | |||||
| 59 | 945121 | Nameplate |
|
- | |||||
| 67 | 534927 | Plug, Hole (2) (white) |
|
- | |||||
| 67 | 989878 | Plug, Hole (2) (coffee) |
|
- | |||||
| 67 | 989197 | Plug, Hole (2) (almond) |
|
- | |||||
| 67 | 989879 | Plug, Hole (2) (golden Harvest) |
|
- | |||||
| 67 | 989880 | Plug, Hole (2) (new Avocado) |
|
- | |||||
| 71 | 877485 | List, Parts |
|
- | |||||
| 71 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 71 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 71 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 71 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 71 | 350956 | Enamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | |||||
| 71 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 71 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 71 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 71 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 71 | 936844 | Shelf (5) |
|
- | |||||
| 71 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | |||||
| 71 | 350941 | Leveler, Enamel (13 Oz. Spray Can) |
|
- | |||||
| 71 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| 71 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 71 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 109.25 | |||||
| 71 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 60.28 | |||||
| 71 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 71 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 71 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 71 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 71 | 261887 | Enamel, Coffee (1 Qt. Uncut) |
|
- | |||||
| 71 | 261889 | Enamel, New Avocado (1 Qt. Uncut) |
|
- | |||||
| 71 | 261891 | Enamel, Golden Harvest (1 Qt. Uncut) |
|
- | |||||
| 71 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 71 | 261886 | Enamel, Coffee (13 Oz. Spray Can) |
|
- | |||||
| 71 | 261888 | Enamel, New Avocado (13 Oz. Spray Can) |
|
- | |||||
| 71 | 261890 | Enamel, Golden Harvest (13 Oz. Spray Can) |
|
- | |||||
| 71 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 71 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 71 | 876370 | Kit, Insulation (5 Pcs. 3`` X 24`` X 48) (Replaces: 479976) |
|
$ 243.14 | |||||
| 71 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 71 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 71 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 71 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 71 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 71 | 799908 | Silicone (spray) |
|
- | |||||
| 71 | 944001 | Guide, Use & Care |
|
- | |||||
| 71 | 945723 | Consumer Buy Guide |
|
- | |||||
| 71 | 934460 | Service & Wirng Sheet |
|
- | |||||
| 71 | 939424 | Energy Label |
|
- |
