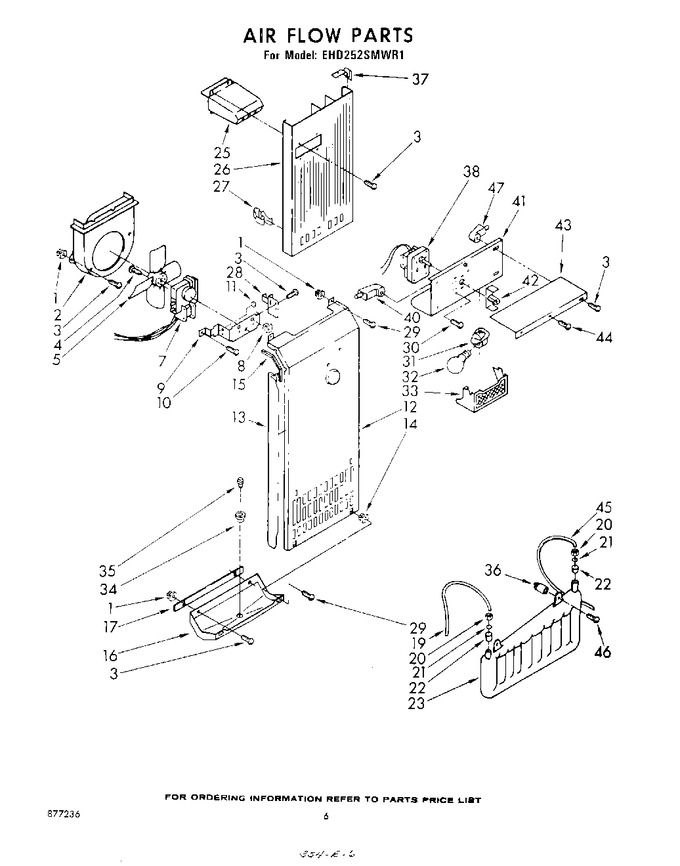

04 - Airflow


05 - Dispenser Front


06 - Refrigerator Door


07 - Freezer Door


08 - Unit , Lit/optional


09 - Freezer Interior


10 - Refrigerator Interior


11 - Airflow And Control


12 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842339		Grommet		Appelez-nous	-
2	983650		Scroll Fan		Appelez-nous	-
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
4	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
5	839859		Blade, Fan		Appelez-nous	-
7	SM999		Motor, Fan   (Replaces: 938223)			Immediately	$ 30.26
7	SM999		Motor, Fan (alternate)   (Replaces: 938283)			Immediately	$ 30.26
8	538449		Grommet (2)		Appelez-nous	-
9	938224		Bracket (single)		Appelez-nous	-
10	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 7.86
11	548268		Grommet (3)		Appelez-nous	-
12	939729		Cover, Evaporator		Appelez-nous	-
13	983649		Gasket (2)		Appelez-nous	-
14	848445		Grommet (2)		Appelez-nous	-
15	987178		Gasket, Evaporator Cover (top) (2)		Appelez-nous	-
16	934121		Pan, Drain		Appelez-nous	-
17	934130		Gasket, Drain Pan		Appelez-nous	-
19	W10823511		Tube, Water   (Replaces: 988220)			Immediately	$ 32.41
20	488795		Nut, Compression (2)		Appelez-nous	-
21	00753257		Ring, ``o`` (2)   (Replaces: 488819)			Immediately	$ 295.49
22	4387491		Insert, Tube (2)   (Replaces: 841707)				$ 7.84
23	WP2256126		Reservoir, Water   (Replaces: 839912)				$ 168.85
25	983652		Deflector, Air		Appelez-nous	-
26	983651		Duct, Air		Appelez-nous	-
27	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
28	548263		Bracket (double)		Appelez-nous	-
29	WP488729		Screw, 8-15 X 1/2 (8)   (Replaces: 488992)			Immediately	$ 7.79
30	303776		Screw, 8-32 X 5/16 (4)   (Replaces: 488906)		Appelez-nous	-
31	4387478		Socket, Light   (Replaces: 851067)			Immediately	$ 110.16
32	8009		Bulb   (Replaces: 527949)			Immediately	$ 18.67
33	983359		Lens-light		Appelez-nous	-
34	836088		Fitting, Drain		Appelez-nous	-
35	842259		Cap, Drain		Appelez-nous	-
36	843436		Grommet (3) (reservoir Mounting)		Appelez-nous	-
37	987954		Baffle, Air		Appelez-nous	-
38	851152		Motor, Dispenser		Appelez-nous	-
38	989604		Motor, Dispenser (alternate)		Appelez-nous	-
40	983660		Stud Support (2)		Appelez-nous	-
41	989716		Bracket, Dispenser Motor		Appelez-nous	-
42	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 23.34
43	989715		Cover, Ice Dispenser		Appelez-nous	-
44	00487294		Screw, 8-32 X 3/8   (Replaces: 487294)				$ 175.09
45	W10823511		Tube, Water   (Replaces: 983370)			Immediately	$ 32.41
46	488775		Screw, 8 X 1-1/2 (3)		Appelez-nous	-
47	992720		Stud Support (2)		Appelez-nous	-
