SELECT A DIAGRAM

02 - Cabinet


03 - Breaker Trim And Liner


04 - Airflow


05 - Dispenser Front

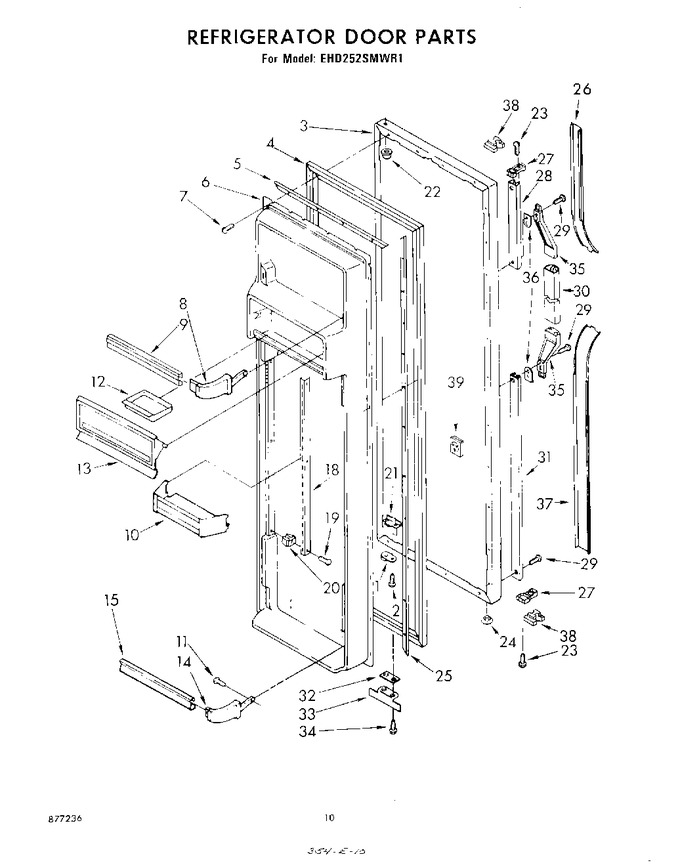

06 - Refrigerator Door


07 - Freezer Door


08 - Unit , Lit/optional


09 - Freezer Interior


10 - Refrigerator Interior


11 - Airflow And Control


12 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4318165		Closer, Door Cam   (Replaces: 986758)			Immediately	$ 27.36
2	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
3	935806		Door, Refrigerator (new Avocado)		Appelez-nous	-
3	935803		Door, Refrigerator (white)		Appelez-nous	-
3	935804		Door, Refrigerator (coffee)		Appelez-nous	-
3	935805		Door, Refrigerator (golden Harvest)		Appelez-nous	-
3	935807		Door, Refrigerator (almond)		Appelez-nous	-
4	939341		Gasket, Refrigerator Door		Appelez-nous	-
5	836121		Retainer, Top & Bottom Gasket (2)		Appelez-nous	-
6	935808		Panel, Interior		Appelez-nous	-
7	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
7	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.85
8	WP849996		End, Trim & Support (2)   (Replaces: 849685)				$ 7.57
9	985526		Trim, Shelf		Appelez-nous	-
10	935809		Door Shelf, Cantilever (3)		Appelez-nous	-
11	00487953		Screw, 8-18 X 1/2   (Replaces: 487953)				$ 177.40
12	520747		Tray, Butter		Appelez-nous	-
13	935322		Door, Compartment		Appelez-nous	-
14	935226		Support, Trim (2)		Appelez-nous	-
15	987779		Trim, Shelf		Appelez-nous	-
18	983804		Ladder, Door Shelf (2)		Appelez-nous	-
19	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.79
20	537095		Clip, Expansion (6)		Appelez-nous	-
21	988402		Plate, Tap		Appelez-nous	-
22	509929		Cap, Hinge (2)		Appelez-nous	-
23	488915		Screw, 6-32 X 1/2 (2)		Appelez-nous	-
24	534927		Plug, Hole		Appelez-nous	-
25	982887		Retainer, Side Gasket (2)		Appelez-nous	-
26	935886		Insert, Handle		Appelez-nous	-
27	935104		Cap, Handle (2)		Appelez-nous	-
28	935876		Retainer, Insert (top)		Appelez-nous	-
29	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 487909)			Immediately	$ 7.79
30	935091		Handle, Center (white, Coffee, & Almond)		Appelez-nous	-
30	935093		Handle, Center (golden Harvest)		Appelez-nous	-
30	935092		Handle, Center (new Avocado)		Appelez-nous	-
31	935875		Retainer Insert (bottom)		Appelez-nous	-
32	988421		Shim, Bracket		Appelez-nous	-
33	988420		Bracket, Door Stop		Appelez-nous	-
34	488549		Screw, 8 X 5/8		Appelez-nous	-
35	935103		End Cap, Handle (2)		Appelez-nous	-
36	935075		Shim, End Cap		Appelez-nous	-
37	935885		Insert, Handle		Appelez-nous	-
38	938770		Spacer, End Cap (2)		Appelez-nous	-
39	WP939101		Tap, Plate (2)   (Replaces: 991871)				$ 7.50

    View Diagram in Separate Window       Print Part List
