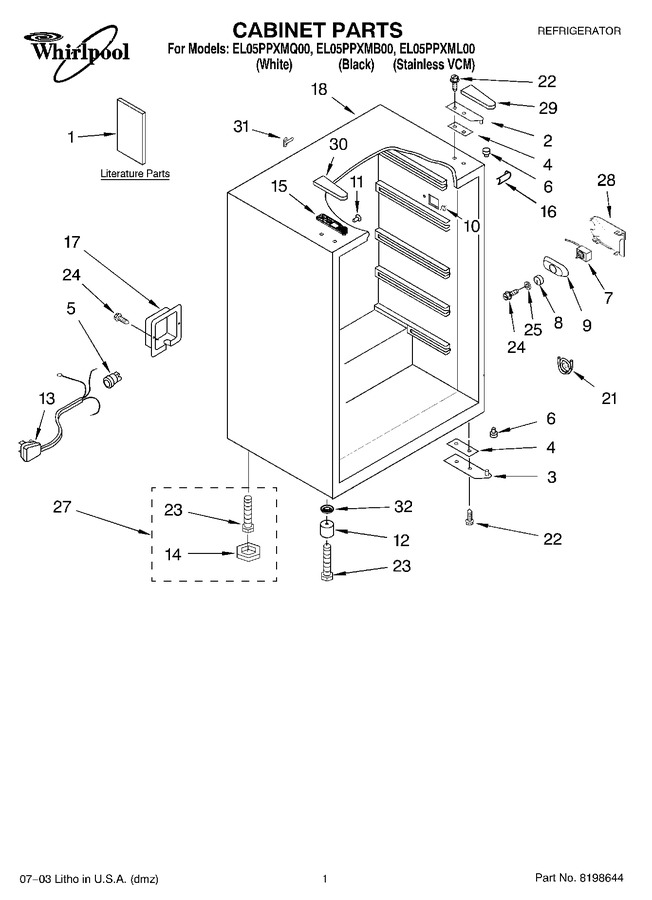

01 - Cabinet Parts


02 - Unit Parts


03 - Shelf Parts


04 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8209155		Owners Manual		Appelez-nous	-
2	4312747		Hinge, Top (white)		Appelez-nous	-
2	4312748		Hinge, Top (black)		Appelez-nous	-
3	4312749		Hinge, Bottom (white)		Appelez-nous	-
3	4312748		Hinge, Bottom (black)		Appelez-nous	-
4	4312438		Shim, Hinge		Appelez-nous	-
5	4312439		Strain Relief		Appelez-nous	-
6	4312440		Bushing, Hinge		Appelez-nous	-
7	4312752		Thermostat		Appelez-nous	-
8	4312753		Knob, Thermostat		Appelez-nous	-
9	4312754		Control Box		Appelez-nous	-
10	4312443		Stud		Appelez-nous	-
11	4312765		Stud		Appelez-nous	-
12	8209161		Foot, Front (black-left)		Appelez-nous	-
12	8209160		Foot, Front (white-left)		Appelez-nous	-
12	8209163		Foot, Front (black-right)		Appelez-nous	-
12	8209162		Foot, Front (white-right)		Appelez-nous	-
13	4312756		Power Cord				$ 34.40
14	4312406		Cap, Leveler		Appelez-nous	-
15	4312760		Door Lock		Appelez-nous	-
16	4312575		Filler, Wrapper (black)		Appelez-nous	-
16	8209151		Filler, Wrapper (white)		Appelez-nous	-
17	4312514		Box, Junction		Appelez-nous	-
18	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
21	4312579		Bulb, Thermostat		Appelez-nous	-
22	4312453		Screw		Appelez-nous	-
23	4312405		Leveler		Appelez-nous	-
24	4312454		Screw		Appelez-nous	-
25	4312455		Washer		Appelez-nous	-
27	4312407		Kit, Leg Leveler				$ 5.30
28	4312755		Shield, Control Box		Appelez-nous	-
29	4312759		Cover, Hinge (black)		Appelez-nous	-
29	4312758		Cover, Hinge (white)		Appelez-nous	-
30	4312762		Cover, Lock (black)		Appelez-nous	-
30	4312761		Cover, Lock (white)		Appelez-nous	-
31	4312763		Key		Appelez-nous	-
32	4312764		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
