View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts

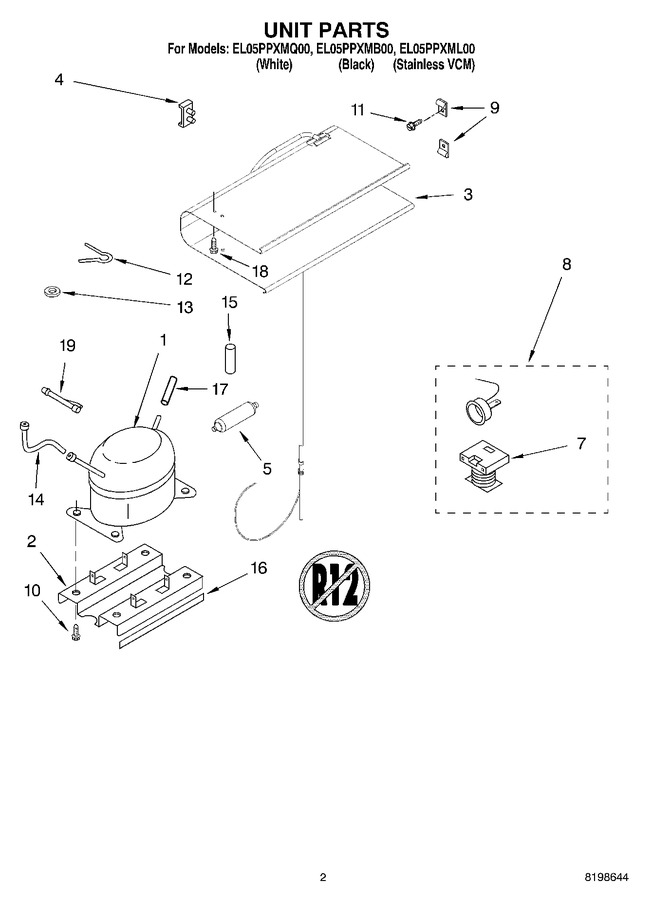

02 - Unit Parts
03 - Shelf Parts
04 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4312766 | Compressor |
|
- | |||||
| 2 | 4312457 | Base, Compressor |
|
- | |||||
| 3 | 4312767 | Evaporator |
|
- | |||||
| 4 | 4312459 | Retainer, Evaporator |
|
- | |||||
| 5 | W10843121 | Drier (Replaces: 4312496) |
|
Immediately | $ 57.13 | ||||
| 7 | N/A | Relay (see Overload) |
|
- | |||||
| 8 | 4312582 | Overload (includes Relay) |
|
$ 118.82 | |||||
| 9 | 4312768 | Support, Evaporator |
|
- | |||||
| 10 | WP4312464 | Screw (Replaces: 4312464) |
|
$ 7.30 | |||||
| 11 | 4312771 | Screw |
|
- | |||||
| 12 | 4312465 | Pin, Cotter |
|
- | |||||
| 13 | 4312466 | Washer |
|
- | |||||
| 14 | 4312580 | Tube, Connector |
|
- | |||||
| 15 | 4312530 | Gasket |
|
- | |||||
| 16 | 4312769 | Trim, Base |
|
- | |||||
| 17 | 4312770 | Tube, Service |
|
- | |||||
| 18 | WP489491 | Screw (Replaces: 4312772) |
|
$ 7.30 | |||||
| 19 | 4312577 | Connector, Suction Line |
|
- |
