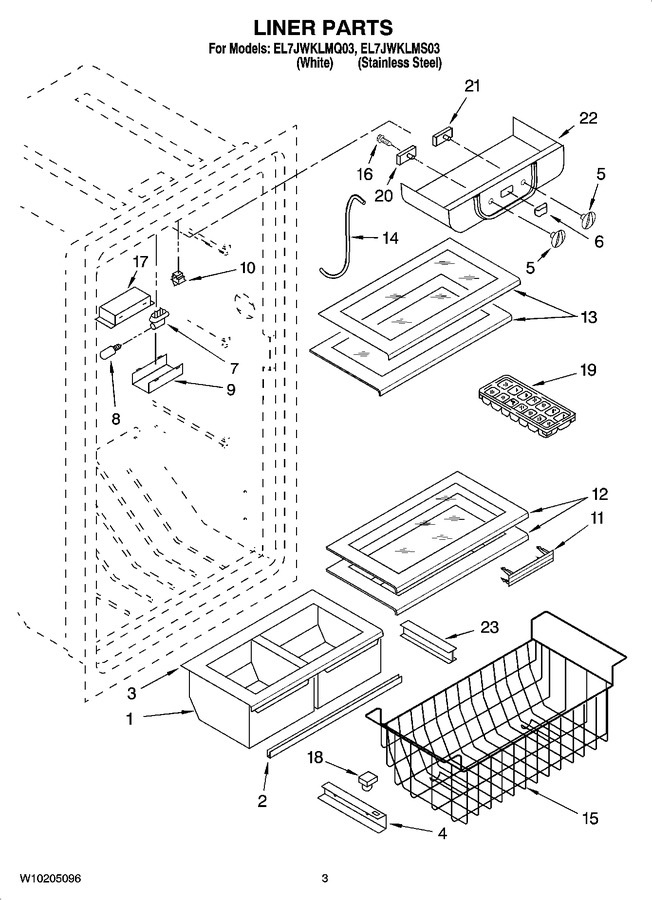

02 - Liner Parts
03 - Door Parts
04 - Unit Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210237 | Pan, Crisper |
|
- | |||||
| 2 | 4390773 | Channel, Crisper Cover |
|
- | |||||
| 3 | 4390772 | Shelf, Crisper Pan |
|
$ 132.57 | |||||
| 4 | 4390819 | Rail, Basket (right Side) |
|
- | |||||
| 4 | 4390820 | Rail, Basket (left Side) |
|
$ 77.44 | |||||
| 5 | 8210206 | Knob, Control |
|
- | |||||
| 6 | 8210203 | Switch (illuminated) |
|
- | |||||
| 7 | 4390644 | Lamp, Socket |
|
- | |||||
| 8 | W11679940 | Bulb, Light (Replaces: 4390465) |
|
Immediately | $ 11.30 | ||||
| 9 | 4390743 | Light Shield |
|
- | |||||
| 10 | W11384469 | Switch, Light (Replaces: 4390513) |
|
Immediately | $ 39.09 | ||||
| 11 | WP3-80414-103 | Vent Plug (Replaces: 4357295) |
|
$ 13.50 | |||||
| 12 | 4390817 | Shelf, Middle |
|
$ 113.01 | |||||
| 13 | 4390816 | Shelf, Top |
|
- | |||||
| 14 | WP2196003 | Tubing, Thermostat (Replaces: 8210246) |
|
$ 8.35 | |||||
| 15 | 4390818 | Basket, Middle |
|
- | |||||
| 16 | WP489478 | Screw (Replaces: 4357243) |
|
$ 8.18 | |||||
| 17 | 4390630 | Bracket, Light |
|
- | |||||
| 18 | 4390823 | Stop, Basket |
|
- | |||||
| 19 | WP841180A | Tray, Ice Cube (Replaces: 4390944) |
|
Immediately | $ 47.84 | ||||
| 20 | 8210207 | Control, Temp. (rc) |
|
$ 110.22 | |||||
| 21 | 8210208 | Control, Temp. (fc) |
|
- | |||||
| 22 | 8210204 | Housing, Control |
|
- | |||||
| 23 | 4390774 | Support, Crisper Cover |
|
- |
