SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts

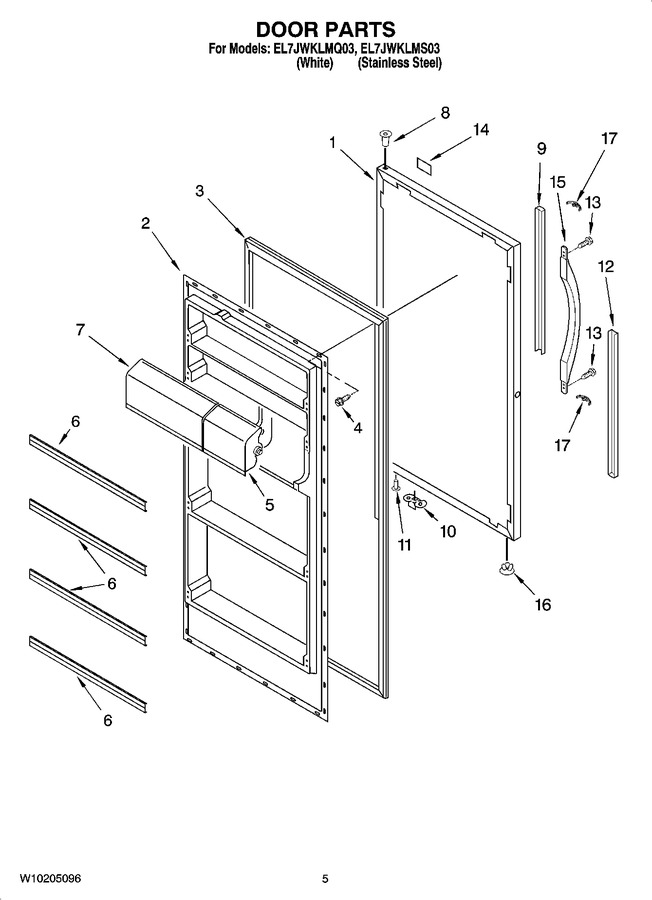

03 - Door Parts


04 - Unit Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390765		Exterior Door (includes Insulation) (stainless Steel)		Appelez-nous	-
1	4390746		Exterior Door (includes Insulation) (white)		Appelez-nous	-
2	4390945		Interior Panel		Appelez-nous	-
3	WP4357142		Gasket (white)   (Replaces: 4357142)			Immediately	$ 279.97
3	WP4-81048-007		Gasket (black)   (Replaces: 4390759)				$ 377.45
4	4390598		Screw   (Replaces: 4357290)				$ 22.04
5	8210263		Door, Compartment (short)		Appelez-nous	-
6	4390752		Trim Shelf		Appelez-nous	-
7	8210264		Door, Compartment (long)		Appelez-nous	-
8	4390731		Bushing, Upper (white)				$ 19.69
8	4390869		Bushing, Upper (black)		Appelez-nous	-
9	4390941		Trim, Handle Top (black)		Appelez-nous	-
9	4390856		Trim, Handle Top (white)		Appelez-nous	-
10	4390695		Door Stop		Appelez-nous	-
11	4390731		Bushing, Bottom (white)				$ 19.69
11	4390869		Bushing, Bottom (black)		Appelez-nous	-
12	4390857		Trim, Handle Bottom (white)		Appelez-nous	-
12	4390942		Trim, Handle Bottom (black)		Appelez-nous	-
13	WP489491		Screw   (Replaces: 4390669)				$ 7.30
14	WP2213265		Nameplate (black)   (Replaces: 4390758)			Immediately	$ 93.18
14	4390656		Nameplate (white)		Appelez-nous	-
15	4390757		Handle Kit (includes Items 9, 12, 13. & 17) (black)		Appelez-nous	-
15	3-82596-002		Handle Kit (includes Items 9, 12, 13. & 17) (white)   (Replaces: 4390747)				$ 265.43
16	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 11.34
17	4390935		Clips, Handle		Appelez-nous	-
