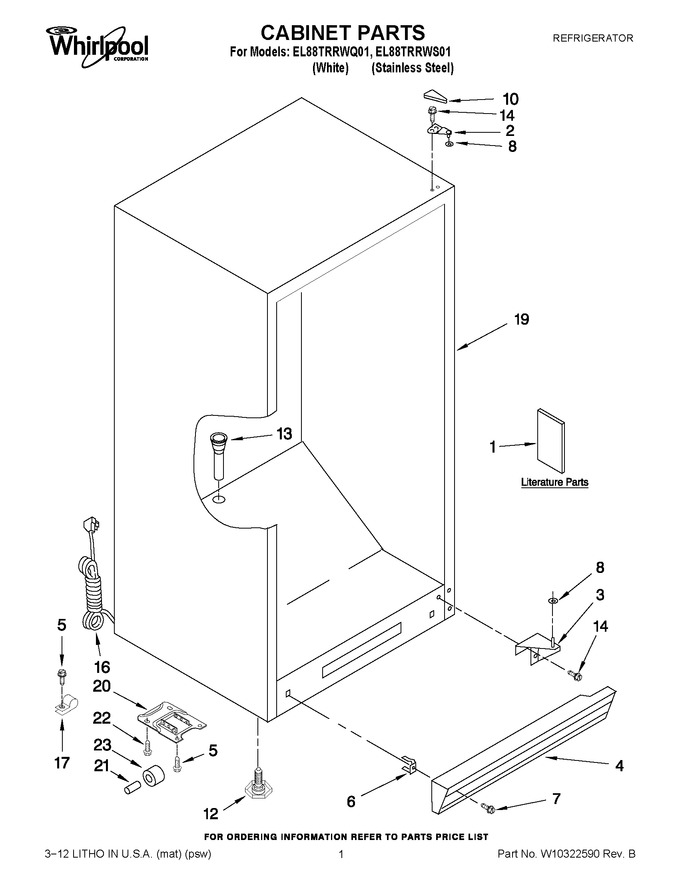

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1-82952-001		Owners Manual		Appelez-nous	-
1	W10296808		Energy Guide/tag		Appelez-nous	-
2	W10260541		Top Hinge (black)   (Replaces: W10260290)				$ 51.02
2	2-81016-105		Top Hinge (white)   (Replaces: 8210222)				$ 43.24
3	4-82693-013		Bottom Hinge (white)				$ 79.20
3	4-82693-011		Bottom Hinge (black)				$ 78.68
4	WP4-60461-005		Grille (includes 6 & 7) (white)   (Replaces: 8210290)				$ 117.48
4	W10271517		Grille (includes 6 & 7) (black)		Appelez-nous	-
5	WP3-24838-048		Screw   (Replaces: 4357277)				$ 8.33
6	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 11.50
7	WP489478		Screw   (Replaces: 4357243)				$ 8.18
8	W10851331		Washer   (Replaces: 4390520)				$ 10.57
10	4357279		Cover, Hinge (white)				$ 46.56
10	W10254179		Cover, Hinge (black)		Appelez-nous	-
12	WP3-82710-001		Leg, Leveller (black)   (Replaces: W10205065)			Immediately	$ 20.32
12	WP3-82710-001		Leg, Leveller (white)   (Replaces: W10205066)			Immediately	$ 20.32
13	W10164544		Grommet, Drain		Appelez-nous	-
14	WP8204624		Screw   (Replaces: 4356830)				$ 17.48
16	8210403		Power Cord		Appelez-nous	-
17	4357159		Clamp		Appelez-nous	-
19	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
20	8210265		Bracket, Roller		Appelez-nous	-
21	4390755		Axle				$ 13.86
22	8210266		Screw		Appelez-nous	-
23	3-60315-001		Roller, Front   (Replaces: 4390754)				$ 32.89

    View Diagram in Separate Window       Print Part List
