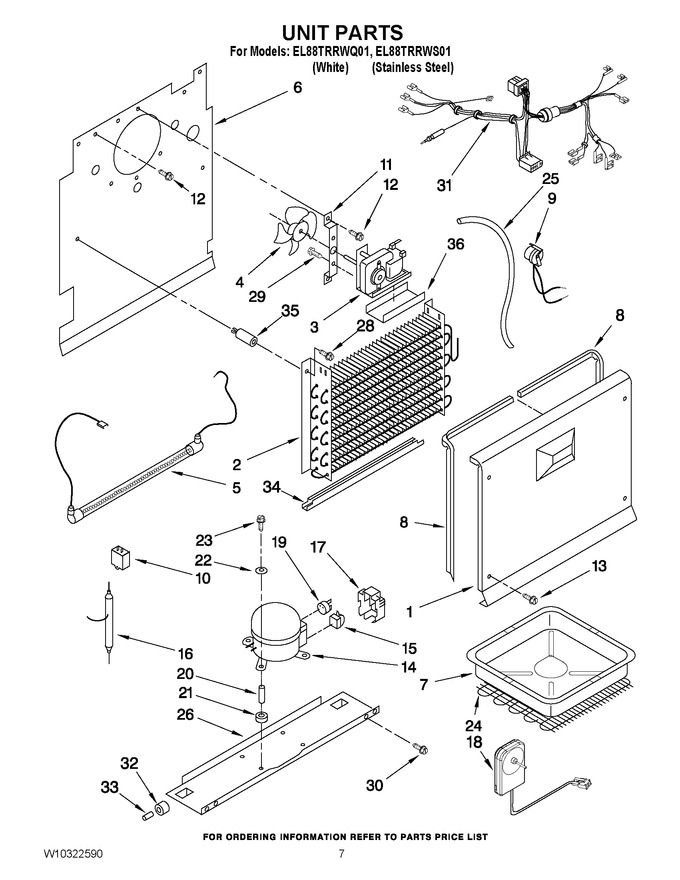

01 - Cabinet Parts
02 - Liner Parts
03 - Door Parts
04 - Unit Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4-82699-001 | Cover, Evaporator |
|
$ 92.84 | |||||
| 2 | 4390782 | Evaporator |
|
- | |||||
| 3 | WP3-60336-001 | Fan Motor (Replaces: 4390914) |
|
Immediately | $ 339.78 | ||||
| 4 | WPW10445742 | Fan Blade (Replaces: 4390912) |
|
Immediately | $ 10.55 | ||||
| 5 | WP3-80405-003 | Heater, Defrost (Replaces: W10164625) |
|
$ 210.29 | |||||
| 6 | W10296812 | Plate, Evaporator Mount |
|
- | |||||
| 7 | W10296814 | Drain Pan |
|
- | |||||
| 8 | 4390664 | Gasket, Cover Evaporator (leftt) |
|
$ 93.57 | |||||
| 8 | 4390663 | Gasket, Cover Evaporator (right) |
|
$ 250.95 | |||||
| 9 | WP1-81801-001 | Bi-metal Defrost (Replaces: 4390783) |
|
Immediately | $ 129.87 | ||||
| 10 | 8210309 | Capacitor |
|
- | |||||
| 11 | 3-82685-001 | Bracket, Motor |
|
$ 60.00 | |||||
| 12 | 60001022 | Screw, Motor (Replaces: 4356943) |
|
$ 66.41 | |||||
| 13 | WP3-24004-109 | Screw (Replaces: 4357110) |
|
$ 9.14 | |||||
| 14 | W10237328 | Compressor (includes Items 15,16,17 & 19) (Replaces: 4-32972-111) |
|
$ 621.65 | |||||
| 15 | W11673287 | Relay (Replaces: 8210313) |
|
$ 82.40 | |||||
| 16 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 10.71 | ||||
| 17 | WP2162358 | Cover (Replaces: 4356599) |
|
$ 95.29 | |||||
| 18 | W10296815 | Condenser Motor |
|
- | |||||
| 19 | 61004883 | Overload (Replaces: 4356785) |
|
$ 50.28 | |||||
| 20 | 4356846 | Sleeve |
|
$ 15.00 | |||||
| 21 | 4356335 | Grommet, Compressor |
|
- | |||||
| 22 | 4356847 | Washer |
|
- | |||||
| 23 | 8210220 | Screw, Compressor |
|
- | |||||
| 24 | 4-82683-002 | Condenser |
|
$ 278.70 | |||||
| 25 | WP4357245 | Heat, Exchanger Compressor Pan (Replaces: 4357245) |
|
Immediately | $ 284.25 | ||||
| 26 | W10256546 | Compressor Pan (white) |
|
- | |||||
| 26 | 8210202 | Compressor Pan (black) |
|
- | |||||
| 28 | WP489491 | Screw (Replaces: 4390821) |
|
$ 7.30 | |||||
| 29 | WP3400094 | Screw (Replaces: 4356970) |
|
$ 9.26 | |||||
| 30 | WP3-24838-048 | Screw (Replaces: 4357277) |
|
$ 8.33 | |||||
| 31 | 4-82890-001 | Harness, Unit |
|
- | |||||
| 32 | 3-60315-001 | Roller (Replaces: 4390754) |
|
$ 32.89 | |||||
| 33 | 4390755 | Axle |
|
$ 13.86 | |||||
| 34 | W10164624 | Shield, Heater |
|
- | |||||
| 35 | 4357020 | Grommet |
|
- | |||||
| 36 | 4357128 | Shield, Motor |
|
$ 114.21 | |||||
| NI | N/P | Refrigerant Charge 4.107 Oz. (r-134a) |
|
- |
