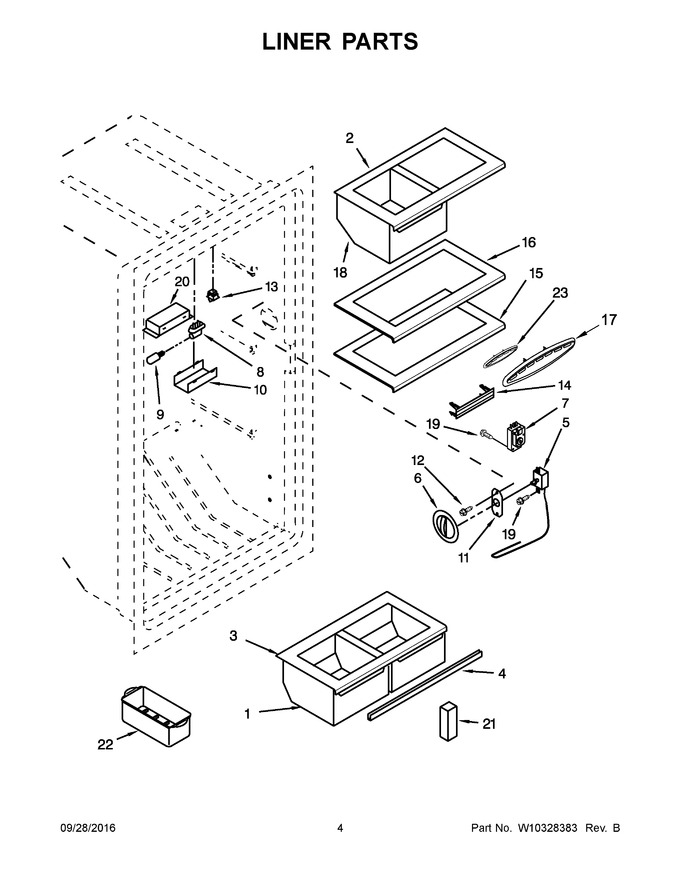

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210342		Pan, Crisper		Appelez-nous	-
2	4390770		Shelf, Crisper (upper)				$ 134.00
3	4390772		Shelf, Crisper (lower)				$ 132.57
4	4390773		Channel, Crisper Cover		Appelez-nous	-
5	WPW10424991		Thermostat   (Replaces: 4390766)			Immediately	$ 146.10
6	4357292		Knob, Thermostat		Appelez-nous	-
7	WP3-81329		Timer, Defrost   (Replaces: 4357124)			Immediately	$ 199.14
8	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 112.73
9	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 11.30
10	4390743		Shield, Light		Appelez-nous	-
11	1-81154		Plate, Thermostat   (Replaces: 4357041)				$ 15.00
12	WPW10068250		Screw   (Replaces: 4357042)				$ 4.27
13	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 39.09
14	WP3-80414-103		Plug, Vent   (Replaces: 4357295)				$ 13.50
15	4390768		Shelf, Middle		Appelez-nous	-
16	4390767		Shelf, Top		Appelez-nous	-
17	W10258753		Diffuser, Upper Air		Appelez-nous	-
18	WP4-60040-004		Pan, Crisper (upper)   (Replaces: 8210236)				$ 170.86
19	681390		Screw   (Replaces: 4356849)				$ 13.71
20	W10135693		Housing, Freezer Light		Appelez-nous	-
21	4390774		Support, Crisper Cover		Appelez-nous	-
22	W10136387A		Egg Bin   (Replaces: 4390775)				$ 19.54
23	4-82573-002		Diffuser   (Replaces: W10258754)		Appelez-nous	-
