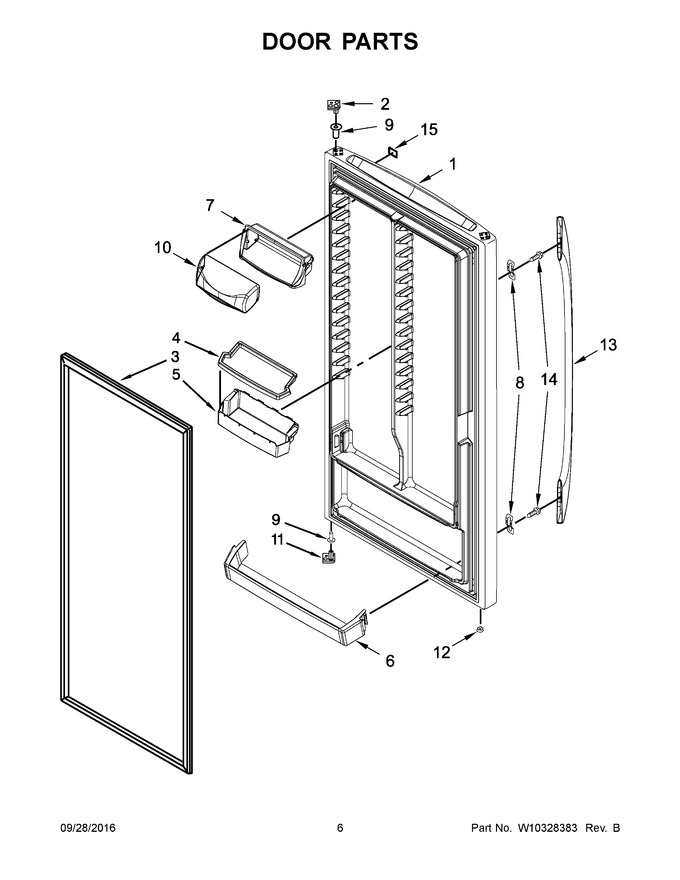

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10296809 | Assembly, Door (includes Interior Liner) (white) (Replaces: 4-82827-058) |
|
$ 783.33 | |||||
| 2 | W10206524 | Stop, Door (top) (white) |
|
$ 32.71 | |||||
| 3 | WP4-65151-002 | Gasket (white) (Replaces: 8210339) |
|
$ 377.13 | |||||
| 4 | 8210383 | Cover, Bin |
|
$ 35.04 | |||||
| 5 | W10179592 | Bin, Door |
|
- | |||||
| 6 | 8210379 | Rail, Door (lower) |
|
- | |||||
| 7 | 8210381 | Housing, Dairy Compartment |
|
- | |||||
| 8 | WP2255411 | Clip, Handle Mount (Replaces: 2255411) |
|
$ 36.55 | |||||
| 9 | 4390731 | Bushing, Hinge (white) |
|
$ 19.69 | |||||
| 10 | 8210382 | Door, Compartment |
|
- | |||||
| 11 | 8210400 | Stop, Door (bottom) (natural) |
|
- | |||||
| 12 | 3-24898-007 | Plug, Vent (Replaces: 4357067) |
|
$ 11.34 | |||||
| 13 | 3-82596-002 | Handle (white) |
|
$ 265.43 | |||||
| 14 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 15 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 13A | 3-82596-003 | Handle (brushed Aluminum) |
|
$ 314.03 | |||||
| 1A | 4-82827-059 | Assembly, Door (includes Interior Liner) (stainless Steel) |
|
- | |||||
| 2A | W10256537 | Stop, Door (top) (black) |
|
- | |||||
| 3A | 4-65151-010 | Gasket (silver) |
|
$ 196.81 | |||||
| 9A | W10271519 | Bushing, Hinge (black) |
|
- |
