SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - Liner, Lit/optional


05 - Unit


06 - Shelf

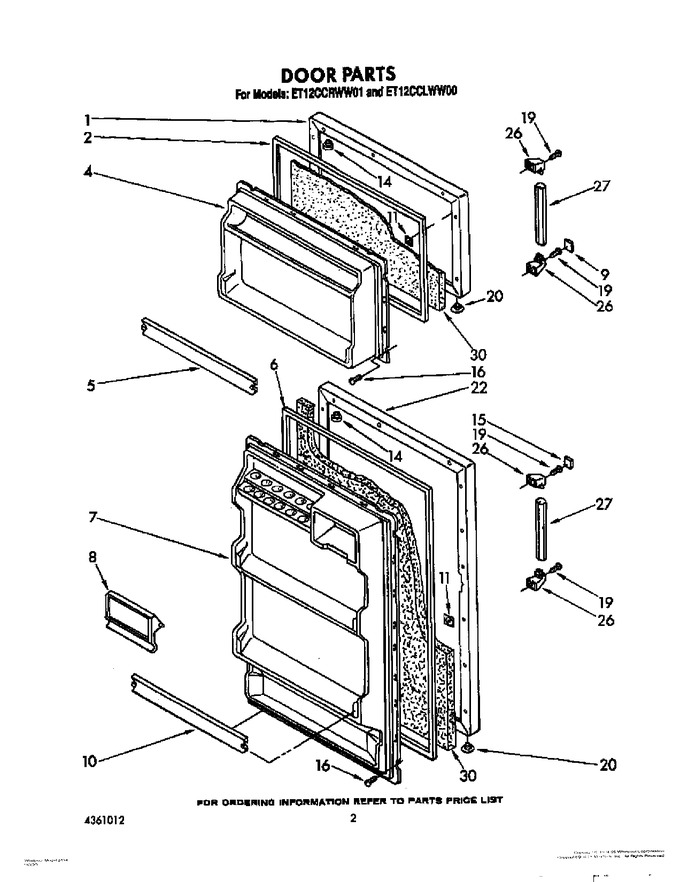

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944943		Freezer Door Panel (also Order Item 30) (almond (l.h.))		Appelez-nous	-
1	944932		Freezer Door Panel (also Order Item 30) (white (r.h.))		Appelez-nous	-
1	944937		Freezer Door Panel (also Order Item 30) (almond (r.h.))		Appelez-nous	-
1	944938		Freezer Door Panel (also Order Item 30) (white (l.h.))		Appelez-nous	-
2	1128064		Freezer Door Gasket		Appelez-nous	-
4	1104910		Panel, Interior Door (freezer)		Appelez-nous	-
5	1116120		Trim, Door Shelf		Appelez-nous	-
6	1128061		Refrigerator Door Gasket		Appelez-nous	-
7	1104904		Panel, Interior Door		Appelez-nous	-
8	1124589		Butter Door		Appelez-nous	-
9	934724		Cover, Screw		Appelez-nous	-
10	1116116		Trim, Door		Appelez-nous	-
11	WP939101		Screw Anchor (4)   (Replaces: 939101)				$ 7.50
14	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
15	1124593		Cover, Screw		Appelez-nous	-
16	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
16	WP489069		Screw, 8 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
19	817000		Screw		Appelez-nous	-
20	534927		Hole Plug (2) (white)		Appelez-nous	-
20	989197		Hole Plug (2) (almond)		Appelez-nous	-
22	944915		Refrigerator Door Panel (also Order Item 30) (almond (r.h.))		Appelez-nous	-
22	944921		Refrigerator Door Panel (also Order Item 30) (almond (l.h.))		Appelez-nous	-
22	944916		Refrigerator Door Panel (also Order Item 30) (white (l.h.))		Appelez-nous	-
22	944910		Refrigerator Door Panel (also Order Item 30) (white (r.h.))		Appelez-nous	-
26	1124591		Handle, End		Appelez-nous	-
27	1124592		Handle, Center		Appelez-nous	-
30	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
