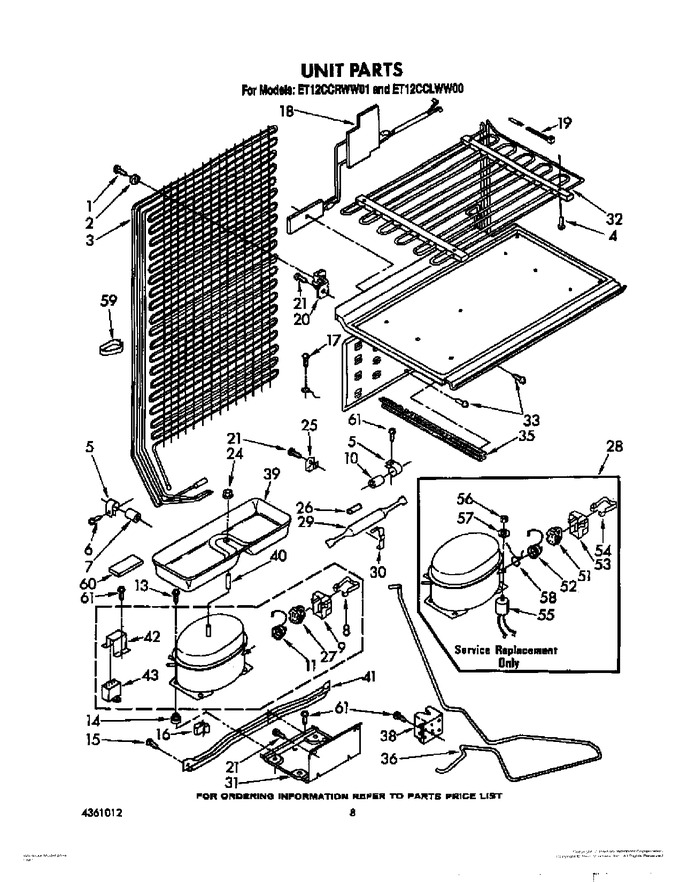

05 - Unit


06 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 3/4 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	1128107		Condenser & Precooler Assembly		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4		Appelez-nous	-
5	510716		Tube Clamp		Appelez-nous	-
6	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 21.16
7	1108064		Dampener		Appelez-nous	-
8	938384		Strap		Appelez-nous	-
9	1108115		Terminal Cover		Appelez-nous	-
10	945593		Dampener		Appelez-nous	-
11	1108114		Overload		Appelez-nous	-
13	876811		Screw, 1/4-28 X 1   (Replaces: 489116)				$ 7.42
14	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
15	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	303776		Ground Screw   (Replaces: 488879)		Appelez-nous	-
18	944971		Defrost Heater		Appelez-nous	-
19	851095		Strap (2)		Appelez-nous	-
20	510721		Condenser Bracket (2)		Appelez-nous	-
21	WP489478		Screw, 8 X 1/2   (Replaces: 489242)				$ 7.75
24	285002		Hex Nut   (Replaces: 489153)				$ 12.24
25	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	WP2262181		Relay   (Replaces: 1108143)				$ 122.65
28	482980		Compressor (includes Illus. 51, 52, 53, 54, 55, 56, 57 & 58) (also Order 482801 Intallation Kit & 87		Appelez-nous	-
29	W10843121		Drier   (Replaces: 943309)			Immediately	$ 52.57
30	1127590		Clamp, Dryer		Appelez-nous	-
31	942860		Unit, Frame		Appelez-nous	-
32	1128054		Evaporator Assembly		Appelez-nous	-
33	486214		Screw 8-15 X 1/2		Appelez-nous	-
35	946364		Gasket, Evaporator		Appelez-nous	-
36	946307		Heat Exchanger		Appelez-nous	-
38	937068		Box, Junction		Appelez-nous	-
39	935781		Tray, Evaporator		Appelez-nous	-
40	941517		Spacer		Appelez-nous	-
41	945449		Unit Rail		Appelez-nous	-
42	1118525		Cover, Capacitor		Appelez-nous	-
43	WPW10662129		Running Capacitor   (Replaces: 1118581)			Immediately	$ 58.86
51	WP2262181		Relay   (Replaces: 1108143)				$ 122.65
52	483036		Overload		Appelez-nous	-
53	1105015		Cover, Terminal		Appelez-nous	-
54	938384		Strap		Appelez-nous	-
55	482996		Capacitor		Appelez-nous	-
56	489142		Nut		Appelez-nous	-
57	489143		Washer		Appelez-nous	-
58	1114190		Overload Spring		Appelez-nous	-
59	942739		Clip, Tube		Appelez-nous	-
60	301774		Pad, Sound		Appelez-nous	-
61	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
61	876764		Valve, Access(3/16``)			Immediately	$ 91.35
61	978028		Valve, Access (1/2)		Appelez-nous	-
61	978029		Valve Access (5/8``)				$ 93.85
61	978030		Valve, Access (3/4``)				$ 130.71
61	WP489478		Screw   (Replaces: 489242)				$ 7.75
61	978026		Valve, Access (5/16``)			Immediately	$ 128.09
61	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
