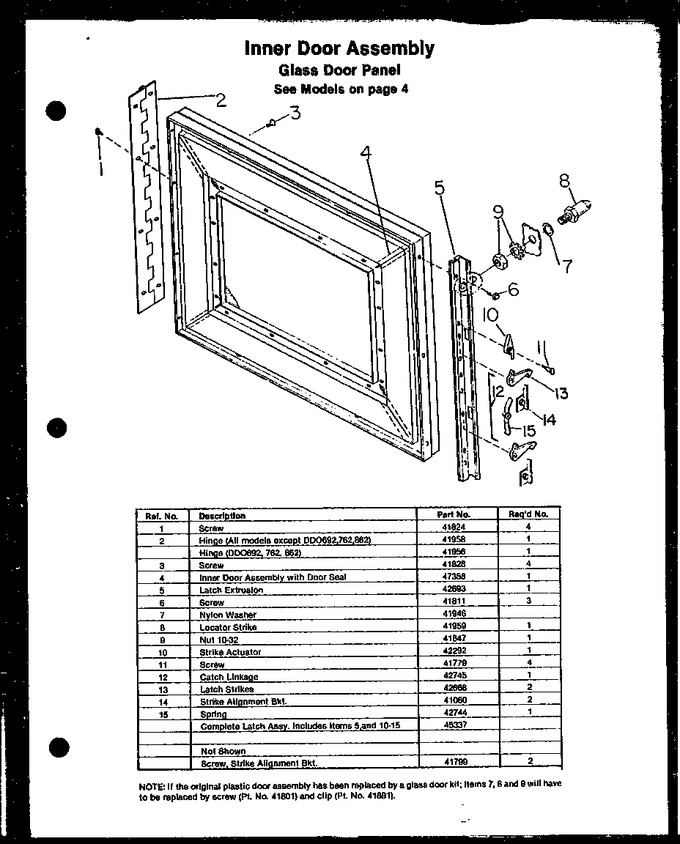

01 - Inner Door Assy
02 - Page 3
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | Y0041956 | Sub 41958, Hinge, Mic. Door |
|
- | |||||
| 3 | Y0041828 | Screw 8-18x500 Microwave X |
|
- | |||||
| 4 | 47358 | Inner Door Assembly With Door |
|
- | |||||
| 5 | 0042693 | Latch Extrusion Gl Dr |
|
- | |||||
| 6 | 8169479 | Screw, No.8-18 X 1/2 P Flt Hd (Replaces: Y0041811) |
|
$ 6.95 | |||||
| 7 | 0041946 | Nylon Washer.187is |
|
- | |||||
| 8 | 41959 | Oven Thermostat |
|
- | |||||
| 9 | 0041847 | Hex Nut No.10-32 Nickel |
|
- | |||||
| 10 | 0042292 | Strike Actuator |
|
- | |||||
| 11 | Y0041779 | Shoulderscrew Micro Strikes |
|
- | |||||
| 12 | 0042745 | Catch, Linkage |
|
- | |||||
| 13 | 0042668 | Latch Strikes |
|
- | |||||
| 14 | 41060 | Broiler Pan |
|
$ 48.25 | |||||
| 15 | 42744 | Inner Panel |
|
- | |||||
| NI | Y0045337 | Latch Extr Repair Mic Door |
|
- | |||||
| NI | Y0041799 | Screw, No. 8a X 1/4 |
|
- |
