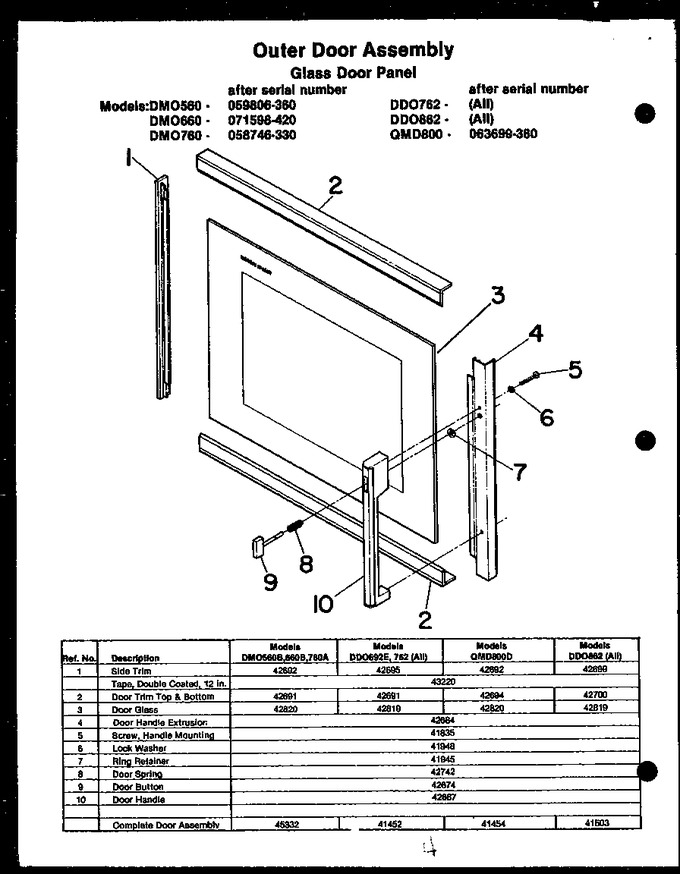

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0043220 | Tape, Double 3/8 X 5 |
|
- | |||||
| 1 | Y0042695 | Side Trim |
|
- | |||||
| 2 | 42691 | Sub 73005-1-cb |
|
- | |||||
| 3 | 0042819 | Door Glass Plain Microwave |
|
- | |||||
| 4 | Y0042684 | Handle Extrusion |
|
- | |||||
| 5 | Y0041835 | Screw No.6x1`` Tr Ph |
|
- | |||||
| 6 | 0041948 | Internal Lock Washer No.6 |
|
- | |||||
| 7 | 0041945 | Ring Retainer |
|
- | |||||
| 8 | 0042742 | Spring Door Microwave |
|
- | |||||
| 9 | 0042674 | Door Button |
|
- | |||||
| 10 | 0042687 | Door Handle Binatone |
|
- | |||||
| NI | 0041452 | Sub 45334, Door, Micro |
|
- |
