02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door, Lit/optional

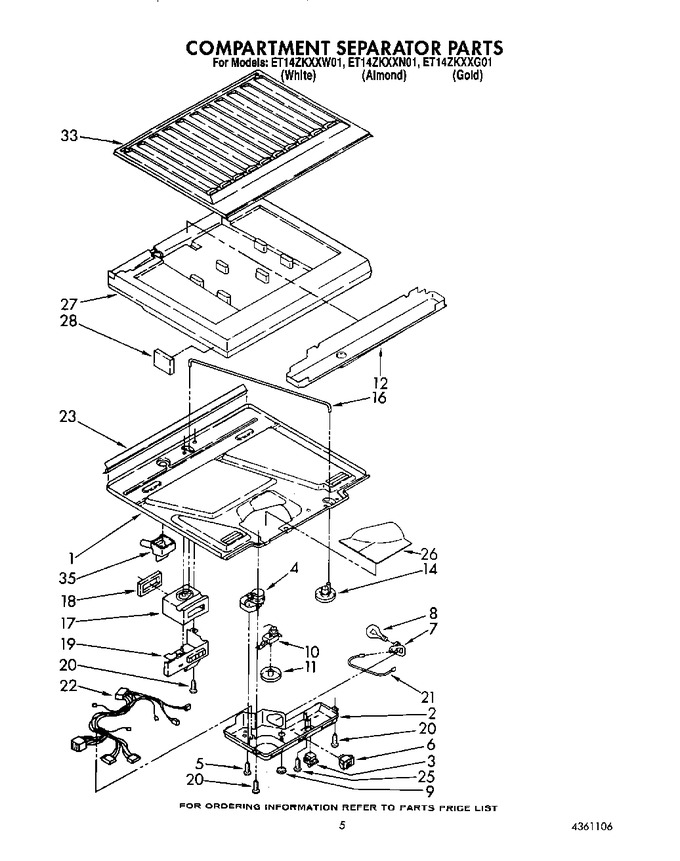

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1111798		Bottom, Compartment Separator		Appelez-nous	-
2	1126703		Box, Control		Appelez-nous	-
3	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 37.23
4	W10822278		Timer, Defrost (8 Hour)   (Replaces: 1127571)			Immediately	$ 34.44
5	WP487353		Screw, 6-20 X 1/2   (Replaces: 488693)				$ 7.57
6	938049		Switch, Toggle		Appelez-nous	-
7	4387478		Socket Assembly   (Replaces: 851067)			Immediately	$ 110.16
8	W11679940		Bulb, Light   (Replaces: 946059)			Immediately	$ 11.30
9	940014		Hole Plug				$ 18.33
10	1123394		Thermostat Barrier Assembly   (Replaces: 1127884)				$ 209.48
11	2148148		Knob, Thermostat		Appelez-nous	-
12	1108170		Drain Pan		Appelez-nous	-
14	2148149		Knob, Air Control		Appelez-nous	-
16	1111270		Rod, Connecting		Appelez-nous	-
17	1118973		Air Diffuser Assembly		Appelez-nous	-
18	1114325		Gasket, Air Diffuser		Appelez-nous	-
19	937226		Cover, Air Diffuser		Appelez-nous	-
20	WP489478		Screw   (Replaces: 489242)				$ 7.75
21	937078		Wiring Assembly		Appelez-nous	-
22	2154724		Wiring Assembly, Control Box & Cabinet		Appelez-nous	-
23	1123916		Gasket, Bottom Separator		Appelez-nous	-
25	488678		Screw, 8 X 1-3/8		Appelez-nous	-
26	1108196		Insulation, Filler		Appelez-nous	-
27	1123389		Insulation, Compartment Separator		Appelez-nous	-
28	946367		Pad (2)		Appelez-nous	-
33	1119323		Separator, Compartment (top)		Appelez-nous	-
35	939191		Cup, Drain				$ 5.84

    View Diagram in Separate Window       Print Part List
