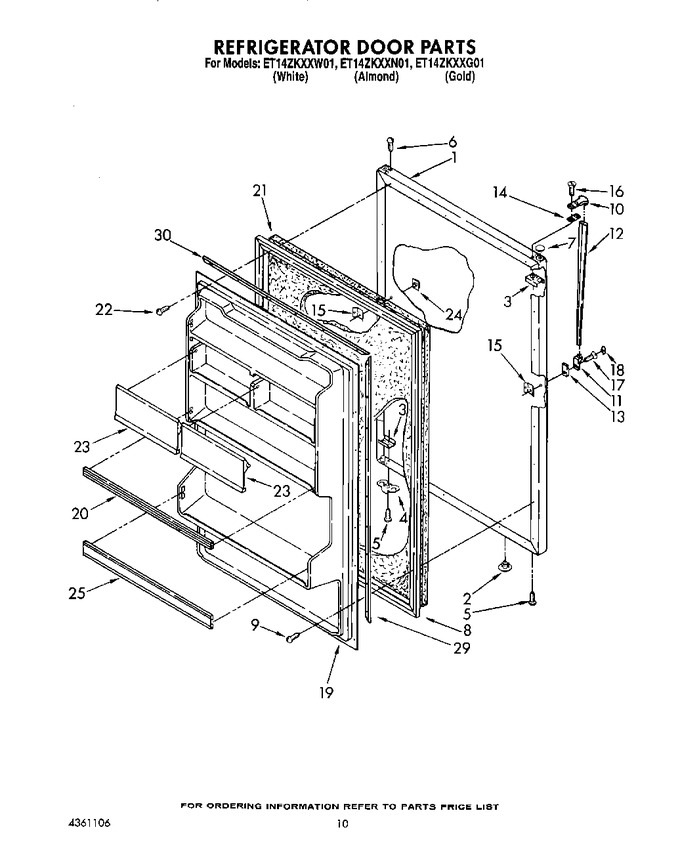

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1103918		Panel, Refrigerator Door (golden Harvest)		Appelez-nous	-
1	1103919		Panel, Refrigerator Door (almond) (also Order Item 21)		Appelez-nous	-
1	1103917		Panel, Refrigerator Door (white)		Appelez-nous	-
2	534927		Hole Plug		Appelez-nous	-
3	943185		Plate, Tap		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
8	2188445A		Door Gasket, Magnetic   (Replaces: 2148043)				$ 197.35
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	2148503		Handle End		Appelez-nous	-
11	WP2183139		Handle End Cap   (Replaces: 1101632)			Immediately	$ 51.98
12	WP2162555		Handle, Center (white)   (Replaces: 2148035)			Immediately	$ 157.62
12	2148036		Handle, Center (almond)		Appelez-nous	-
12	1106189		Handle, Center (golden Harvest)		Appelez-nous	-
13	992872		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	WP1101634		Screw Cover   (Replaces: 981182)				$ 9.68
19	1120632		Interior Door Panel		Appelez-nous	-
20	1124985		Trim, Door Shelf (2)		Appelez-nous	-
21	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 8.28
23	1124987		Compartment Door		Appelez-nous	-
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
24	1122694		Hole Plug, Handle (golden Harvest)		Appelez-nous	-
25	1124986		Trim, Door Shelf		Appelez-nous	-
29	1120615		Gasket Retainer, Side (2)		Appelez-nous	-
30	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
30	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
30	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
30	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
30	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
30	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
30	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
30	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
30	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
30	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
30	1120614		Gasket Retainer, Top & Bottom (2)				$ 27.51
30	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
30	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
30	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
30	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
30	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
30	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
30	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
30	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
30	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
30	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
30	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
30	833938		Kit, Terminal Connector				$ 8.47
	1117510		Torx Key				$ 5.84
	1129316		Eckmf90			Immediately	$ 149.11
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	LIT1124990		Care & Use Guide		Appelez-nous	-
	LIT2156271		Energy Label		Appelez-nous	-
	LIT2154703		Service & Wiring Sheet		Appelez-nous	-
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	LIT4361106		Parts List		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
