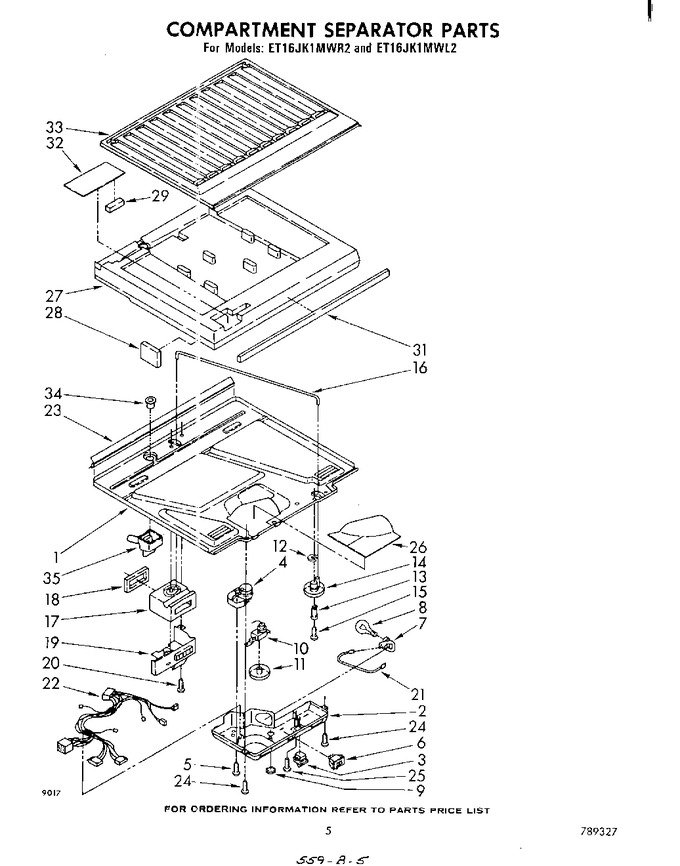

04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door , Parts Not Illus


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	942754		Bottom, Compartment Separator		Appelez-nous	-
2	942757		Box, Control		Appelez-nous	-
3	W11384469		Switch, Rocker Arm   (Replaces: 549702)			Immediately	$ 37.23
4	W10822278		Timer, Defrost (10 Hour)   (Replaces: 945486)			Immediately	$ 34.44
5	WP487353		Screw, 6-20 X 1/2   (Replaces: 488693)				$ 7.57
6	938049		Switch, Toggle		Appelez-nous	-
7	4387478		Socket Assembly   (Replaces: 851067)			Immediately	$ 110.16
8	W11679940		Bulb, Light   (Replaces: 946059)			Immediately	$ 11.30
9	940014		Hole Plug				$ 18.33
10	1123394		Thermostat Barrier Assembly   (Replaces: 942758)				$ 209.48
11	943798		Knob, Thermostat		Appelez-nous	-
12	489053		Lockwasher		Appelez-nous	-
13	937105		Spacer, Knob		Appelez-nous	-
14	935727		Knob, Air Control		Appelez-nous	-
15	WP488163		Screw, 8 X 1   (Replaces: 487534)				$ 7.54
16	942761		Rod, Connecting		Appelez-nous	-
17	942762		Air Diffuser Assembly		Appelez-nous	-
18	942765		Gasket, Air Diffuser		Appelez-nous	-
19	942767		Cover, Air Diffuser		Appelez-nous	-
20	WP489069		Screw, 8 X 1/2   (Replaces: 488764)			Immediately	$ 7.86
21	937078		Wiring Assembly		Appelez-nous	-
22	1103898		Wiring, Assembly Control Box		Appelez-nous	-
23	943733		Gasket, Bottom Separator		Appelez-nous	-
24	WP250830		Screw, 8-32 X 1/2 (2)   (Replaces: 489048)				$ 7.95
25	488864		Screw, 8-15 X 1-1/2		Appelez-nous	-
26	942817		Insulation, Filler		Appelez-nous	-
27	942770		Insulation, Compartment Separator		Appelez-nous	-
28	946367		Pad (2)		Appelez-nous	-
29	944998		Protector, Wiring		Appelez-nous	-
31	942771		Insulation, Center Rail		Appelez-nous	-
32	942772		Shield, Compartment Separator		Appelez-nous	-
33	942773		Separator, Compartment (top)		Appelez-nous	-
34	942849		Drain Insert, Separator		Appelez-nous	-
35	939191		Cup, Drain				$ 5.84
