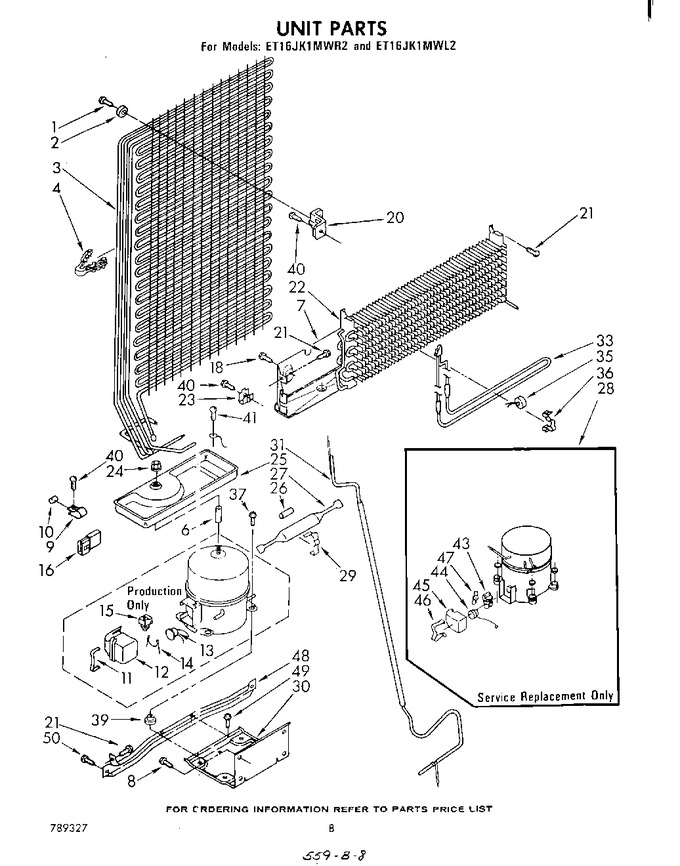

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.54
2	944772		Bumper (2)		Appelez-nous	-
3	942862		Condenser & Precooler Assembly		Appelez-nous	-
4	942739		Clip Tube (2)		Appelez-nous	-
6	1105130		Spacer		Appelez-nous	-
7	942874		Heat Shield Evaporator		Appelez-nous	-
8	WP250830		Screw   (Replaces: 489048)				$ 7.95
9	510716		Tube Clamp		Appelez-nous	-
10	945593		Dampener		Appelez-nous	-
11	943322		Spring, Relay Case		Appelez-nous	-
12	943321		Case, Relay		Appelez-nous	-
13	943770		Overload		Appelez-nous	-
14	943320		Spring, Overload		Appelez-nous	-
15	943772		Relay		Appelez-nous	-
16	934326		Housing Plug		Appelez-nous	-
18	WP965173		Screw, 8 X 3/8   (Replaces: 487869)			Immediately	$ 10.72
20	944791		Bracket, Condenser (2)		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
22	942866		Evaporator		Appelez-nous	-
23	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
24	WP487939		Nut   (Replaces: 489087)				$ 7.72
25	942875		Tray, Evaporator		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 52.57
28	W10439652		Compressor (also Order 482801 Tray Mounting Kit & 876765 Tube Kit)   (Replaces: 702217)				$ 421.14
29	547637		Clamp, Drier		Appelez-nous	-
30	942860		Unit Mounting Plate		Appelez-nous	-
31	1105109		Exchanger, Heat		Appelez-nous	-
33	942870		Heater, Defrost		Appelez-nous	-
35	WP4387499		Bi-metal, Defrost   (Replaces: 942871)				$ 120.86
36	942873		Clamp		Appelez-nous	-
37	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.42
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
40	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.86
41	303776		Screw (ground) 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
43	549500		Relay		Appelez-nous	-
44	936073		Overload		Appelez-nous	-
45	549336		Cover		Appelez-nous	-
46	549342		Strap		Appelez-nous	-
47	549086		Overload Spring		Appelez-nous	-
48	942859		Unit Mounting Rail		Appelez-nous	-
49	WP965173		Screw   (Replaces: 487248)			Immediately	$ 10.72
50	876764		Valve, Access(3/16``)			Immediately	$ 91.35
50	978028		Valve, Access (1/2)		Appelez-nous	-
50	978029		Valve Access (5/8``)				$ 93.85
50	978030		Valve, Access (3/4``)				$ 130.71
50	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
50	488973		Screw, 1/4-28 X 1 (2)		Appelez-nous	-
50	978026		Valve, Access (5/16``)			Immediately	$ 128.09
50	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
