02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door


09 - Ice Maker , Miscellaneous

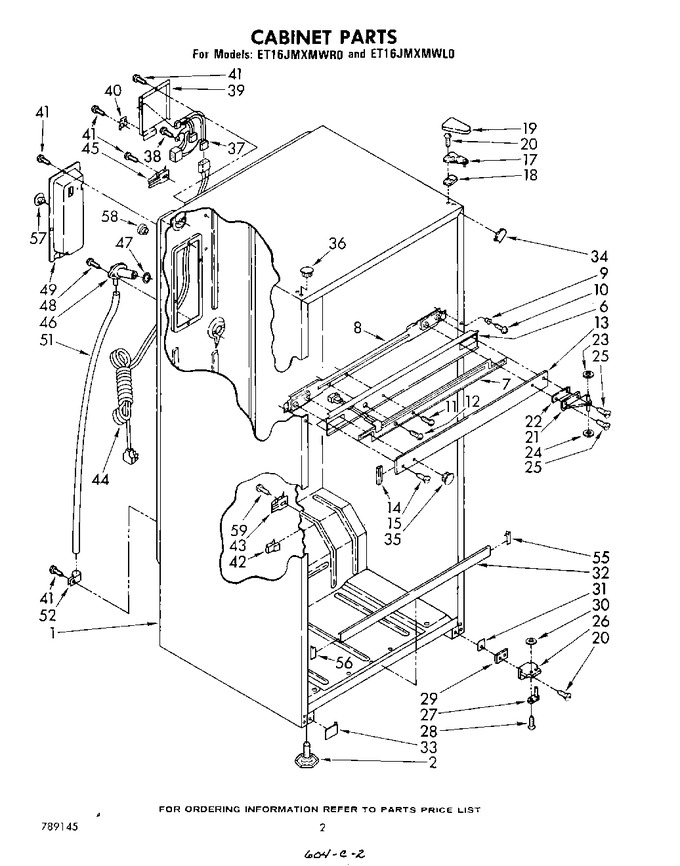

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	944766		Leveler (2)		Appelez-nous	-
6	942738		Frame, Center Rail		Appelez-nous	-
7	942730		Heater, Mullion		Appelez-nous	-
8	942740		Center Rail, Bracket		Appelez-nous	-
9	942737		Ferrule, Center Rail		Appelez-nous	-
10	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.79
11	WP965173		Screw, 8-15 X 3/8   (Replaces: 487584)			Immediately	$ 10.72
12	489113		Screw, 8-32 X 3/8		Appelez-nous	-
13	942735		Center Rail (new Avocado)		Appelez-nous	-
13	1100675		Center Rail (platinum)		Appelez-nous	-
13	942733		Center Rail (coffee)		Appelez-nous	-
13	1100676		Center Rail (toast)		Appelez-nous	-
13	942734		Center Rail (golden Harvest)		Appelez-nous	-
13	942736		Center Rail (almond)		Appelez-nous	-
13	942731		Center Rail (white)		Appelez-nous	-
14	946321		Filler, Center Rail (2) (almond)		Appelez-nous	-
14	946323		Filler, Center Rail (2) (golden Harvest)		Appelez-nous	-
14	946324		Filler, Center Rail (2) (new Avocado)		Appelez-nous	-
14	1100680		Filler, Center Rail (2) (toast)		Appelez-nous	-
14	1100679		Filler, Center Rail (2) (platinum)		Appelez-nous	-
14	946320		Filler, Center Rail (2) (white)		Appelez-nous	-
14	946322		Filler, Center Rail (2) (coffee)		Appelez-nous	-
15	489097		Screw, 10-32 X 3/8		Appelez-nous	-
17	1100513		Shim, Hinge Top		Appelez-nous	-
18	1100509		Shim, Top Hinge		Appelez-nous	-
19	989897		Hinge Cover (new Avocado)		Appelez-nous	-
19	1100173		Hinge Cover (platinum)		Appelez-nous	-
19	1100172		Hinge Cover (toast)		Appelez-nous	-
19	842010		Hinge Cover (white)		Appelez-nous	-
19	989895		Hinge, Cover (coffee)		Appelez-nous	-
19	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
19	989194		Hinge Cover (almond)		Appelez-nous	-
20	488949		Screw (repair)		Appelez-nous	-
20	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 7.86
21	944788		Hinge, Center				$ 32.65
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
24	WP488296		Washer, 11/64   (Replaces: 488296)				$ 7.19
25	WP999367		Screw, 10-32 X 1/2 (2)   (Replaces: 489096)				$ 7.86
26	944783		Hinge Butt, Bottom		Appelez-nous	-
27	654366		Hinge Pin, Bottom				$ 27.15
28	488714		Screw 10-32 X 5/16				$ 5.48
29	1100781		Shim, Bottom Hinge (golden Harvest)		Appelez-nous	-
29	1100778		Shim, Bottom Hinge (white)		Appelez-nous	-
29	1100779		Shim, Bottom Hinge (almond)		Appelez-nous	-
29	1100780		Shim, Bottom Hinge (coffee)		Appelez-nous	-
29	1100782		Shim, Bottom Hinge (new Avocado)		Appelez-nous	-
29	1100783		Shim, Bottom Hinge (toast)		Appelez-nous	-
29	1100784		Shim, Bottom Hinge (platinum)		Appelez-nous	-
30	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
31	942820		Cover, Glider Rail (golden Harvest)		Appelez-nous	-
31	942821		Cover, Glider Rail (new Avocado)		Appelez-nous	-
31	942822		Cover, Glider Rail (almond)		Appelez-nous	-
31	1100685		Cover, Glider Rail (platinum)		Appelez-nous	-
31	1100686		Cover, Glider Rail (toast)		Appelez-nous	-
31	942819		Cover, Glider Rail (coffee)		Appelez-nous	-
31	942818		Cover, Glider Rail (white)		Appelez-nous	-
32	942726		Cover, Deck Rail (new Avocado)		Appelez-nous	-
32	942723		Cover, Deck Rail (white)		Appelez-nous	-
32	942724		Cover, Deck Rail (coffee)		Appelez-nous	-
32	942725		Cover, Deck Rail (golden Harvest)		Appelez-nous	-
32	942727		Cover, Deck Rail (almond)		Appelez-nous	-
32	1100667		Cover, Deck Rail (platinum)		Appelez-nous	-
32	1100668		Cover, Deck Rail (toast)		Appelez-nous	-
33	944832		Cover, Glider Rail (coffee)		Appelez-nous	-
33	944833		Cover, Glider Rail (golden Harvest)		Appelez-nous	-
33	944834		Cover, Glider Rail (new Avocado)		Appelez-nous	-
33	1100681		Cover, Glider Rail (platinum)		Appelez-nous	-
33	1100682		Cover, Glider Rail (toast)		Appelez-nous	-
33	943552		Cover, Glider Rail (white)		Appelez-nous	-
33	944831		Cover, Glider Rail (almond)		Appelez-nous	-
34	942808		Filler, Wrap Corner (2) (coffee)		Appelez-nous	-
34	942810		Filler, Wrap Corner (2) (new Avocado)		Appelez-nous	-
34	942811		Filler, Wrap Corner (2) (almond)		Appelez-nous	-
34	1100683		Filler, Wrap Corner (2) (platinum)		Appelez-nous	-
34	1100684		Filler, Wrap Corner (2) (toast)		Appelez-nous	-
34	942807		Filler, Wrap Corner (2) (white)		Appelez-nous	-
34	942809		Filler, Wrap Corner (2) (golden Harvest)		Appelez-nous	-
35	940087		Hole Plug (almond)		Appelez-nous	-
35	1100688		Hole Plug (toast)		Appelez-nous	-
35	1100687		Hole Plug (platinum)		Appelez-nous	-
35	940090		Hole Plug (new Avocado)		Appelez-nous	-
35	940089		Hole Plug (golden Harvest)		Appelez-nous	-
35	940086		Hole Plug (white)		Appelez-nous	-
35	940088		Hole Plug (coffee)		Appelez-nous	-
36	1100177		Hole Plug (2) (platinum)		Appelez-nous	-
36	842031		Hole Plug (2) (white)		Appelez-nous	-
36	989195		Hole Plug (2) (almond)		Appelez-nous	-
36	989875		Hole Plug (2) (coffee)		Appelez-nous	-
36	989876		Hole Plug (2) (golden Harvest)		Appelez-nous	-
36	989877		Hole Plug (2) (new Avocado)		Appelez-nous	-
36	1100176		Hole Plug (2) (toast)		Appelez-nous	-
37	942844		Cabinet, Wiring Assembly		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 7.95
39	942845		Cover, Wiring		Appelez-nous	-
40	944741		Clip, Wiring Cover		Appelez-nous	-
41	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
42	W10812038		Clip, Wire (4)   (Replaces: 939054)		Appelez-nous	-
43	549193		Clamp-service Cord				$ 13.39
44	937360		Cord, Service		Appelez-nous	-
45	937357		Clamp		Appelez-nous	-
46	942813		Fitting, Drain		Appelez-nous	-
47	940121		Gasket, Seal		Appelez-nous	-
48	WP98165		Screw, 8 X 5/8   (Replaces: 488401)				$ 8.00
49	942853		Plug Assembly		Appelez-nous	-
51	8316810		Tube, Drain   (Replaces: 509640)				$ 119.73
52	519405		Clamp (2)		Appelez-nous	-
55	1100671		Filler, Deck Rail (platinum)		Appelez-nous	-
55	1100672		Filler, Deck Rail (toast)		Appelez-nous	-
55	944700		Filler, Deck Rail (white)		Appelez-nous	-
55	944701		Filler, Deck Rail (almond)		Appelez-nous	-
55	944703		Filler, Deck Rail (golden Harvest)		Appelez-nous	-
55	944702		Filler, Deck Rail (coffee)		Appelez-nous	-
55	944704		Filler, Deck Rail (new Avocado)		Appelez-nous	-
56	1100674		Filler, Deck Rail (toast)		Appelez-nous	-
56	1100673		Filler, Deck Rail (platinum)		Appelez-nous	-
56	944709		Filler, Deck Rail (new Avocado)		Appelez-nous	-
56	944705		Filler, Deck Rail (white)		Appelez-nous	-
56	944706		Filler, Deck Rail (almond)		Appelez-nous	-
56	944707		Filler, Deck Rail (coffee)		Appelez-nous	-
56	944708		Filler, Deck Rail (golden Harvest)		Appelez-nous	-
57	655411		Hole Plug		Appelez-nous	-
58	944796		Wiring, Grommet		Appelez-nous	-
59	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 7.86
