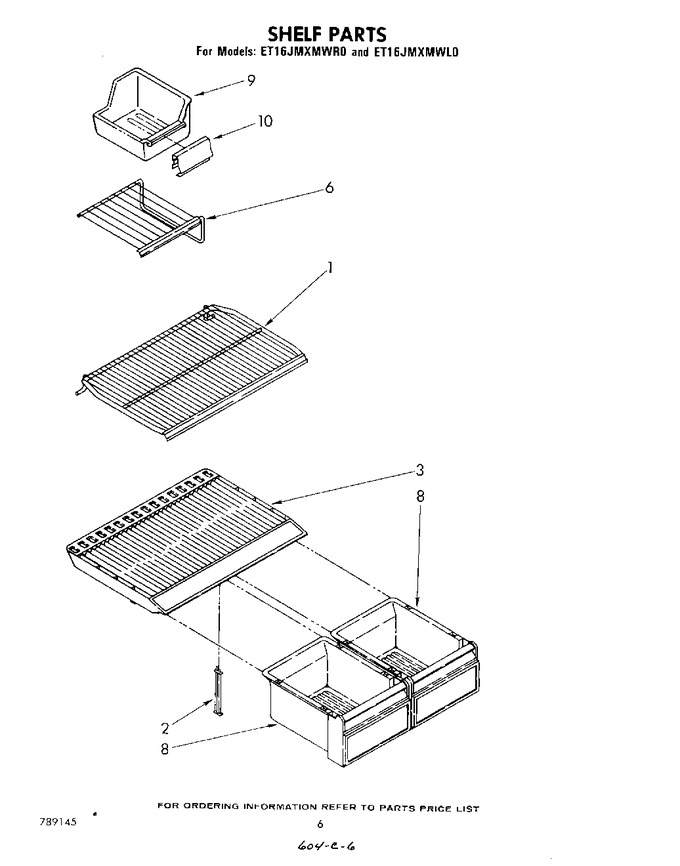

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 942824 | Shelf, Pullout (3) |
|
- | |||||
| 2 | 1100462 | Support Post |
|
- | |||||
| 3 | 942827 | Cover, Crisper (for Platinum Model Only) |
|
- | |||||
| 3 | 946427 | Cover, Crisper |
|
- | |||||
| 6 | 1100799 | Shelf, Ice Cube Pan |
|
- | |||||
| 8 | 942830 | Pan, Crisper (2) |
|
- | |||||
| 8 | 946437 | Crisper Pan Plastic (for Platinum Model Only) |
|
- | |||||
| 9 | 946400 | Ice Cube Pan |
|
- | |||||
| 10 | 539567 | Trim, Ice Pan |
|
- |
