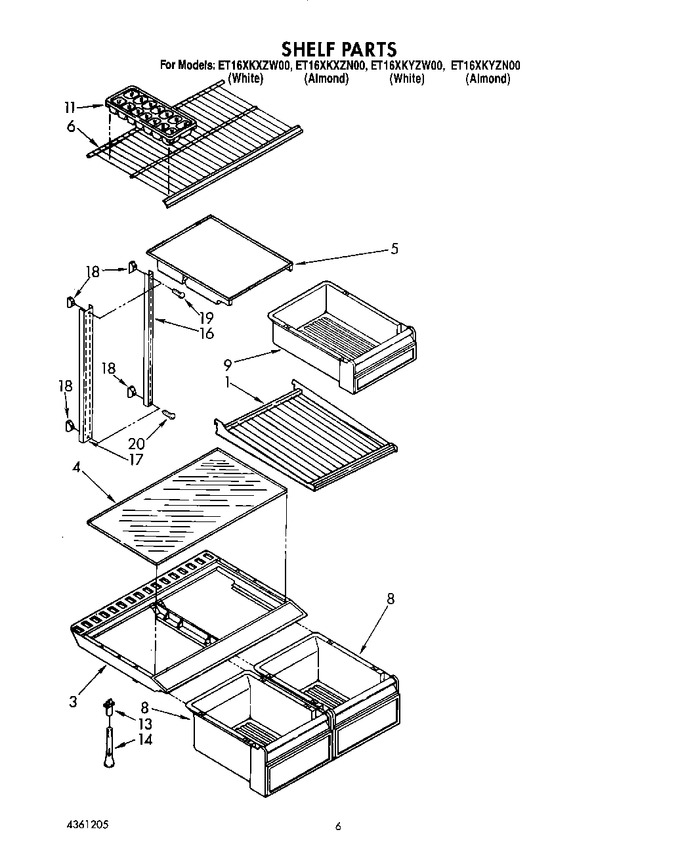

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2156310 | Shelf, Cant. (4) |
|
- | |||||
| 3 | 2156328 | Cover, Crisper |
|
- | |||||
| 4 | 2150104 | Glass, Crisper Cover |
|
- | |||||
| 5 | 944739 | Cover, Meat Pan |
|
- | |||||
| 6 | 943783 | Shelf, Freezer |
|
- | |||||
| 8 | 2160133 | Pan, Crisper (2) |
|
- | |||||
| 9 | 2160134 | Pan, Meat |
|
- | |||||
| 11 | WP841180A | Tray, Ice (2) (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 13 | 1103731 | Support, Crisper Cover |
|
- | |||||
| 14 | 836410 | Post, Cripser Cover |
|
$ 5.84 | |||||
| 16 | 1111807 | Ladder-shelf, Side |
|
- | |||||
| 17 | 1114465 | Ladder, Center |
|
- | |||||
| 18 | 520965 | Screw, Support |
|
$ 31.35 | |||||
| 19 | 489345 | Screw, |
|
- | |||||
| 20 | WP488163 | Screw, (Replaces: 488163) |
|
$ 7.92 |
